IBC Inner Multilayer Blown Film Extrusion Machine With Cooling System
Description:
In order to offer customers better product, we make constant improvements to our multi layer film blowing machine, which now offers many advantages. It adopts the extruder with force feeding function, precision type ceramic heater, precision type double vents air ring, horizontal type rotary traction system, IBC inner cooling system, fully automatic surface friction type double cut double winders, computer concentrate control system, advanced technique and equipments. With great flatness, the films made by our film blowing line can meet high speed, high precision printing demand. It can be widely used into various kind of high transparence packing film manufacture, and create the considerable economic benefit for you.
Characteristics:
1.New tech of extrusion, large capacity ( more than 30% capacity increase ) , good plasticizing performance.

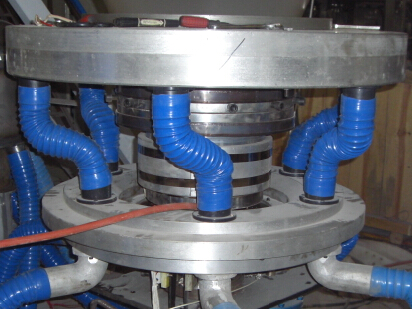

2.Advanced technique of central - fed compact die head, compact structure, quick - change formula, saving raw materials.

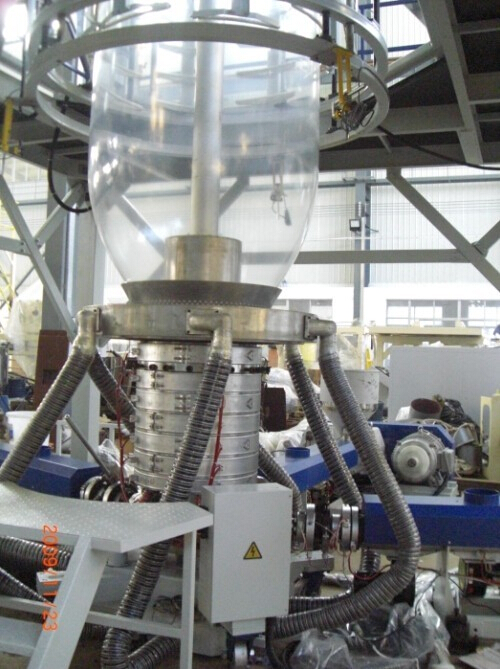

3.IBC ( internal bubble cooling ) system to improve the output, reduce energy consume, get better product quality.

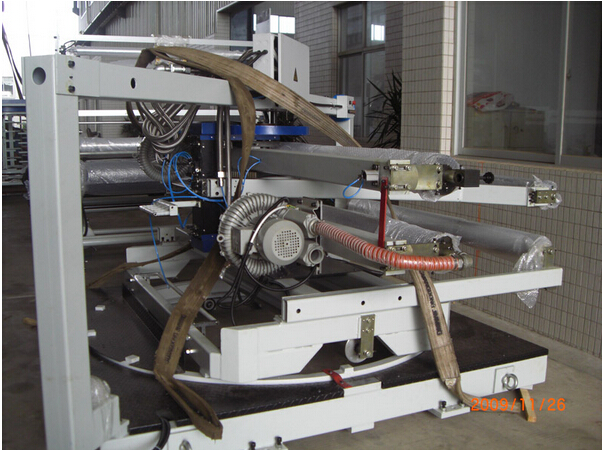

4.Horizontal type reversing haul- off system to improve film quality, avoid edge wrinkling, be suitable for the process of high - speed printing and multi - operation

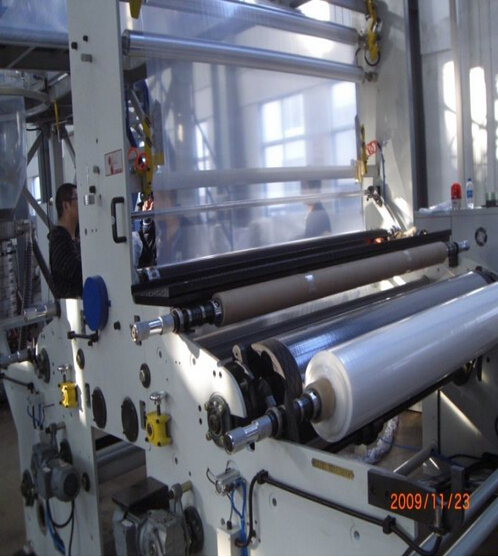

5.It adopts full - automatic double - station wdinding sysetm, automatic roll changing ,automatic cutting, meter counting functions.

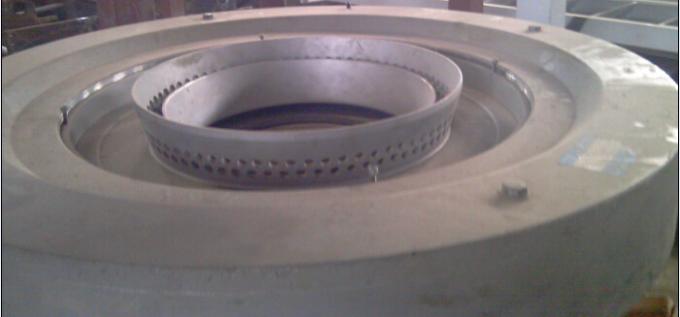

6.Precise double - lip air ring
7.The surface of the machine frame is processed by advanced paint technology with long using life and superior anti - rust performance.
8.Incorporating many latest technologies to get higher output,better film thickness tolerance,and lower power consumption,and gain more value for the customers.
Technical Parameter:
Type
|
SJ55-GS1300
|
SJ60-GS1500
|
SJ65-GS1800
|
SJ-GS2300
|
Max. Lay Flat Width (mm)
|
1200
|
1400
|
1700
|
2100
|
Film Layer
|
3
|
3
|
3
|
3
|
Film Thickness (mm)
|
0.02-0.12
|
0.02-0.12
|
0.02-0.12
|
0.02-0.12
|
Max. Output(kg/h)
|
200
|
250
|
300
|
400
|
Raw Material
|
LLDPE , LDPE , EVA
|
Screw Diameter(mm)
|
φ 45/φ 55/φ 45
|
φ 50/φ 60/φ 50
|
φ 60/φ 70/φ 60
|
φ 75/φ 90/φ 75
|
Screw L/D Ratio
|
30.1
|
30.1
|
30.1
|
30.1
|
Screw Max. Rotation Speed (r/min)
|
100
|
100
|
100
|
100
|
Extruding Driving Power(kw)
|
18.5/30/18.5
|
22/37/22
|
30/45/30
|
55/90/55
|
Die Structure
|
IBC Film Tube Inner Cooling System
|
Air-ring Structure
|
Double Vents Air Ring
|
Reversing Haul-off System
|
Horizontal± 180°
|
Take-off Wide-up Speed (m/min)
|
45-120
|
Total Power(kw)
|
150
|
280
|
280
|
350
|
Overall Dimensions(mm)
|
According to actual machine
|
