| Film Layer: | Double Layer | Raw Material: | HDPE , LDPE , LLDPE |
|---|---|---|---|
| Heating Ring: | Cast Aluminum | Winder Motor: | Torque Motor |
| Rotary Die Device: | Continuous 360 Degree Rotation | Barrel And Screw Material: | 38 Chrome-molybdenum Aluminum , Nitrogen Treated |

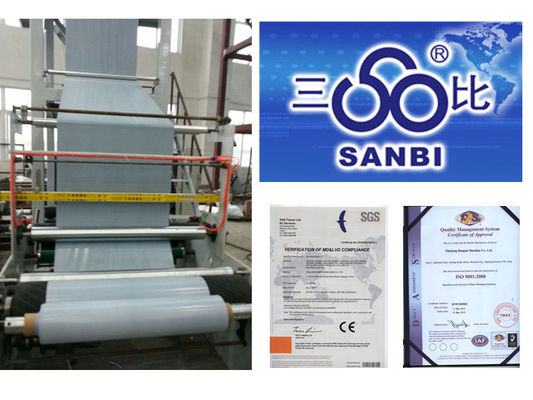

Screw Diameter 30mm Double layer Rotary Die Blown Film Extrusion Machine
USE:
It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc,Which are widely used for packing liquid, printed base material, products for export and industrial products,etc.It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc,Which are widely used for packing liquid, printed base material, products for export and industrial products,etc.
Characteristics:
1. Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.
1. MAIN STANDARD TECHNICAL VARIABLES
|
Model |
2SJ-G30 |
|
Diameter of screw |
Ф30×2 |
|
L/D |
30:1 |
|
Reduced diameter of film(mm) |
100-500 |
|
Single-face Thickness of film(mm) |
0.001-0.08 |
|
Die head diameter |
50mm |
|
Max. Output(kg/h) |
50 |
|
Power of main motor(kw) |
22 |
|
Heating Power(kw) |
45 |
|
Outline diameter(L×W×H)(mm) |
5000×2500×4500 |
|
Weight(T) |
4.5 |
2. configuration
|
Barrel and screw material: 38 chrome-molybdenum aluminum , nitrogen treated |
|
|
Rotary die device : Continuous 360 degree rotation |
|
|
Gear box: water cooling reducer, hard tooth surface |
|
|
Double winder: Manual change roller (with banana roller, cold knifes for cutting edges of the film and middle of film 3pcs ) |
|
|
With : counter of metric |
|
|
Main motor : China brand motor With inverter control (TAIWAN brand ) - |
|
|
Heating ring : cast aluminum |
|
|
With Air compressor |
|
|
winder motor : torque motor |
|
|
with pneumatic cylinder on top tower and winder side. With pneumatic cylinder control the pressure roller and embossing roller |
|
|
With up and down device. |
