Automatic Bag Making Machine Polythene Bag Making Machine 65-75pcs/Min

China Automatic Bag Making Machine Polythene Bag Making Machine 65-75pcs/Min supplier

Large Image :  Automatic Bag Making Machine Polythene Bag Making Machine 65-75pcs/Min

Product Details:

Place of Origin: ZHEJIANG,CHINA
Brand Name: SANBI
Certification: CE, ISO9001
Model Number: RJHQ-800

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: usd 25000 one set
Packaging Details: wooden package
Delivery Time: 30 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets one month
Detailed Product Description
Material: Plastic Film Width: 250-600mm
Length: 250-730mm Speed: 65-75pcs/min

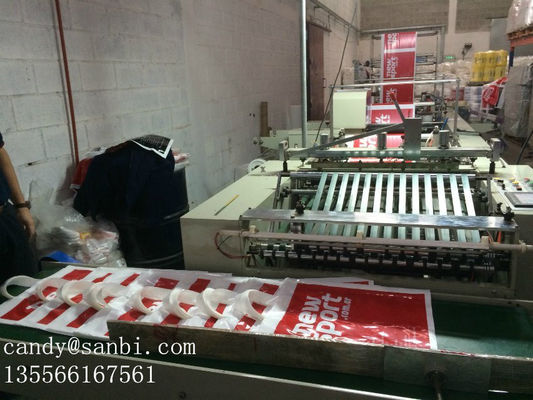

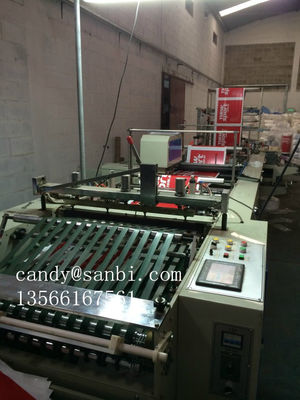

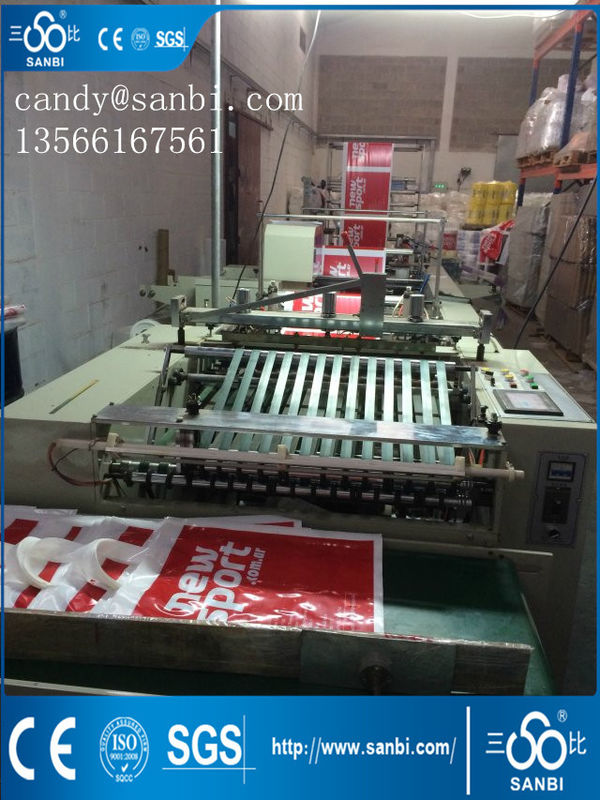

RJHQ-800 Fully Automatic Computer-Controlled Handle Bag Multi-functional Making-bag Machine



Automatic Bag Making Machine Polythene Bag Making Machine 65-75pcs/Min

Automatic Bag Making Machine Polythene Bag Making Machine 65-75pcs/Min

Automatic Bag Making Machine Polythene Bag Making Machine 65-75pcs/Min



Consulting Products

1. Characteristics:

This machine has four functions(soft loop handle bag, patch handle bag, poly draw handle bag, die cut handle bag) which is combined with machinery, optics, electric and pneumatic.

The whole machine adopts microcomputer control, Panasonic servo motor control system which can fix length of bag freely. Photoelectric tracker, accurate and stable, stopping automatically when the label is lost. Automatic pressure synchronous punching and synchronous sealing. Automatic counting which can set count alarm. Automatic constant temperature make the sealing firm and smooth.

a. Flexible soft loop handle and patch film feeding system, fully automatic.(patent)

b. Per-sealing knife, heated on double sides and strong for fusing, to make the bags without deformation.

c. The sealing knife is made of high queality material and without deformation even heated by high temperature.

d. Newly design of sealing knife top lift and turn over systerm

e. It’s designed by hesting punching, and it’s easy to cut off, the waster can fall off automatically.



2. Main Technical Parameter:

Model

RJHQ-800

Length of bag(mm)

250-730

Width of bag(mm)

250-600

Top-folding edge(mm)

50-75

Bottom inserting edge(mm)

20-70

Speed of bag-making

 (pcs/min)

Soft loop handle bag

Patch handle bag

Poly draw handle bag

Die cut handle bag

60

60

70

70

Total power(kw)

13

Weight(kg)

3500

Overall Dimension(mm)

8200*3100*1870



3. Spare parts

01



thermocouple



3pcs

0



cutter blade



2boxes

06



solid-state voltage regulator



1pc

09



level earth foot plate



1set

10



silica gel oil (with one brush)



1 bottle

15



Switches, rotary knob: 2pcs each one



4pcs

16



Solid-state voltage regulator



2pcs

11



Rubber roll springs



20pcs

20



Power wire copper linker



5pc

21

Plastic belt



30pcs

03

small proximity switch(24V)



2pcs

14

small electric relay (four feet touching points, and two feet touching points: 2 pcs each one)



40pcs

13

Heating pipe: (side-sealing cutter: 1pc, soft handle:2pcs,pre-heating blade:2pcs, hot piercing: 2pcs, patch: 2pcs)



9pcs

02



high temperature stick tape (PTEE high temperature heating cloth: 2 meters)(made in Japan)



1roll

12



windpipe ¢4,¢6,¢8   windpipe linker: 2 pcs for each one



3meters

01



tool (tool box: 1 pc, inner hexagonal spanner: 1 set, screwdriver: 2 pcs, oil pot: 1pc, 8—10,12—14,17—19 open and wrench: 1pc each one)



1set

07



skew correction device operation instructions



1pc

18



inverter operation instructions book



1pc

19



Servo operation instructions book



1pc

17



Machine operation instructions book (with circuit diagram, gas circuit diagram)

pc
