Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine

China Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine supplier

Large Image :  Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: SANBI
Certification: CE ISO9001
Model Number: RJHQ-800

Payment & Shipping Terms:

Minimum Order Quantity: ONE SET
Price: USD 25000 ONE SET
Packaging Details: WOODEN PACKING
Delivery Time: 30 WORKDAYS
Payment Terms: L/C, Western Union, MoneyGram, T/T
Detailed Product Description
Bag Width: 250-600 Kinds: 4 Kinds Of Bags
Length Of Bag: 250-730mm Total Power: 13kw

Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine

1. Characteristics:


This machine has four functions(soft loop handle bag, patch handle bag, poly draw handle bag,

 die cut handle bag) which is combined with machinery, optics, electric and pneumatic.

The whole machine adopts microcomputer control, Panasonic servo motor control system which

 can fix length of bag freely. Photoelectric tracker, accurate and stable, stopping automatically when

 the label is lost. Automatic pressure synchronous punching and synchronous sealing. Automatic

counting which can set count alarm. Automatic constant temperature make the sealing firm and

smooth.

a. Flexible soft loop handle and patch film feeding system, fully automatic.(patent)

b. Per-sealing knife, heated on double sides and strong for fusing, to make the bags without

deformation.

c. The sealing knife is made of high queality material and without deformation even heated

by high temperature.

d. Newly design of sealing knife top lift and turn over systerm

e. It’s designed by hesting punching, and it’s easy to cut off, the waster can fall off

automatically.



2. Main Technical Parameter:

Model

RJHQ-800

Length of bag(mm)

250-730

Width of bag(mm)

250-600

Top-folding edge(mm)

50-75

Bottom inserting edge(mm)

20-70

Speed of bag-making
 (pcs/min)

Soft loop handle bag
Patch handle bag
Poly draw handle bag
Die cut handle bag

60
60
70
70

Total power(kw)

13

Weight(kg)

3500

Overall Dimension(mm)

8200*3100*1870


3. Spare parts

01


thermocouple


3pcs

0


cutter blade


2boxes

06


solid-state voltage regulator


1pc

09


level earth foot plate


1set

10

)
silica gel oil (with one brush)


1 bottle

15


Switches, rotary knob: 2pcs each one


4pcs

16


Solid-state voltage regulator


2pcs

11


Rubber roll springs


20pcs

20


Power wire copper linker


5pc

21


Plastic belt


30pcs

03



small proximity switch(24V)


2pcs

14


small electric relay (four feet touching points, and two feet touching points: 2 pcs each one)


40pcs

13


Heating pipe: (side-sealing cutter: 1pc, soft handle:2pcs,pre-heating blade:2pcs, hot piercing: 2pcs, patch: 2pcs)


9pcs

02


high temperature stick tape (PTEE high temperature heating cloth: 2 meters)(made in Japan)


1roll

12


windpipe ¢4,¢6,¢8   windpipe linker: 2 pcs for each one


3meters

01


tool (tool box: 1 pc, inner hexagonal spanner: 1 set, screwdriver: 2 pcs, oil pot: 1pc, 8—10,12—14,17—19 open and wrench: 1pc each one)


1set

07


skew correction device operation instructions


1pc

18

inverter operation instructions book


1pc

19


Servo operation instructions book


1pc

17


Machine operation instructions book (with circuit diagram, gas circuit diagram)

1pc

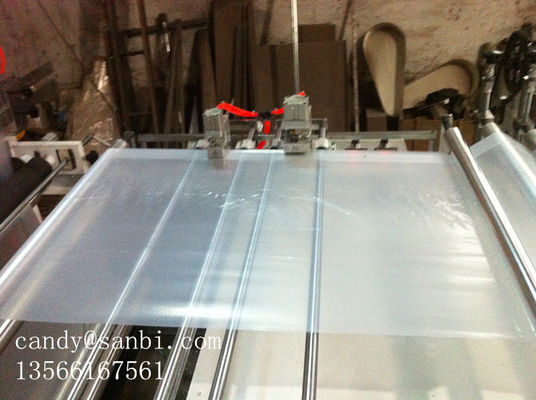

Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine
Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine
Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine
Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine
