PLC 15kw PE / PVC Slitting Rewinding Machine With slip force adjustable

China PLC 15kw PE / PVC Slitting Rewinding Machine With slip force adjustable supplier

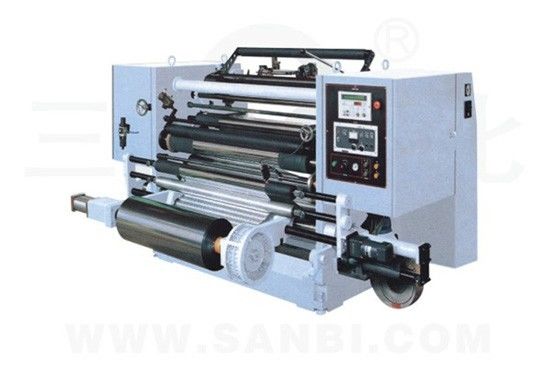

Large Image :  PLC 15kw PE / PVC Slitting Rewinding Machine With slip force adjustable

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE,ISO
Model Number: GFQ-1300B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: 30% down payment,70% balance or L/C
Supply Ability: 30 sets
Detailed Product Description



GFQ-1300B High Speed Slitting & Rewinding Machine



1. Usage:

Suitable for BOPP, PET, PVC, PE, aluminum foil and paper material etc. slitting and rewinding. It integrates advanced mechanical, electric, optical and pneumatic technology and components. This machine has been proved to be of high performance such as high speed, high stability, easy operation and high slitting neatness. It is a kind of idea machine for slitting.

2. Characteristic:

a. The whole machine is controlled by PLC system. It can set working parameters via touch screen as per the slitting requirement. LCD screen display and monitor the working status. The control system has the function such as start buffer, loose proof and meter counter etc, and it is very easy for operation.

b. Introduce Automatic Tension Control System for unwinding, keep the unwinding tension constant. It is also can controlled by taper control according to slitting requirement. Introduce Japanese MITSUHASHI LPC photoelectric automatic alignment system for Edge Position Control. Track Edge or Track Line automatically ensures the correct position of the running material.

c. Shaft less Pneumatic Clutch for Unwinding Roll Loading and Hydraulic Pressure Lift Utility (Option)

d. Main drive and rewinding section is driven by two vector control motors separately. Rewinding tension is controlled by PLC system according to the preset parameters and rewinding diameter as per slitting requirement. The control method is automatic digital taper.

e. The rewinding roller is air differential shaft (Goldenrod, or similar) , slip force can be adjusted automatically to accommodate thickness variety of the material for multi-roller slitting.



3. Main Technical Parameter:

Type

GFQ-1300B

Thickness of Material

0.012-0.15mm

Mechanical speed

380mm

Unwinding Diameter

3” & 6” Φ700mm

Max. unwinding width

1300mm

Width of final roll

50-1300mm

Rewinding diameter

3”Φ148mm

Deviation rectifying method

Photocell track / Edge track

Automatic Tension control method

Invariable tension /  Variation tension

Total power

15kw

Weight of machine

3.6T

Overall dimension

3050*1950*1650mm



  Zhejiang Bangtai Machine Co.,Ltd.  (Form: Dongfeng Machine Industrial Co.,Ltd.)  was built in 1987,  located in Zhejiang Ruian city —— the base of plastic packaging machines of China. Is a old and professional  manufacturer  for  plastic packaging machines.
         We are engaged in manufacturing Film Blowing Machine, Bag-making Machine, Printing Machine, bubble film making machine,Recycling  Machine and so on complete sets of plastic packaging machines and equipments.Our machines have been exporting  to  East  Europe,  North America, South America, South-east Asian, Africa, the Middle East  and so on,  which  without  any exception, have been given good accomplishment by our customers and consumers.
       Zhejiang Bangtai Machine Co.,Ltd. covers 14000 square meter, over 11000 square meter of  which is  building  area, consisting
over 200 staffs, 30 engineer for technical support. With the  concept of “customers the first, reputation the life”, we follow scientific management system in every proceeding, each machine is after strict testing before its delivery.
       Zhejiang Bangtai Machine Co.,Ltd.now win a big market both in domestic and overseas after 20 years efforts  with  powerful technical support and complete service system. We will sincerely do our best to offer best quality and service to every customer and consumer.
