High speed BOPP Tape Slitting Rewinding Machine , Film Slitter Machine

China High speed BOPP Tape Slitting Rewinding Machine , Film Slitter Machine supplier

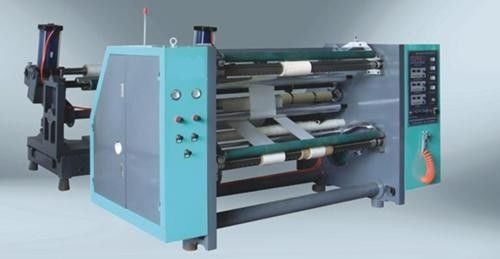

Large Image :  High speed BOPP Tape Slitting Rewinding Machine , Film Slitter Machine

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE,ISO
Model Number: WZFQ-C1100,1300,1600

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: 30% down payment,70% balance or L/C
Supply Ability: 50 sets
Detailed Product Description
High Light:

film cutting machine

,

roll slitting machine


WFQ-B Computer High speed Slitting Machine

1. Characteristics:
This machine is used for slitting and rewinding various large rolling materials such as paper, (20g-300g/㎡)cellophane paper, bill paper, double-face adhesive tape, PVC, weave material, nonwoven of cloth, etc. Adopt A and B pneumatic shaft structure for rewinding. It adopts photoelectric automatic error correction adjustment system for unwind-ing,anomalistic materials will be easy slit. (or liquid press style subtense system) Equipped with automatic waste film blowing device. (vertical knife structure) Manual material loading for unwinding (or pneumatic automatic material loading) with taper cover style pneumatic shaft. (3’,6’)

2. Main Technical Parameter:

Model

WZFQ-1100C

WZFQ-1300C

WZFQ-1600C

Max.width of unwinding

1100mm

1300mm

1600mm

Max.diameter of unwinding

Φ1400mm

Φ1400mm

Φ1400mm

Min.width of slitting

20mm

20mm

20mm

Max.diameter of rewinding

Φ500mm

Φ500mm

Φ500mm

Max.Speed

200m/min

200m/min

200m/min

Precision of slitting

±0.2mm

±0.2mm

±0.2mm

Total Power

7kw

7kw

8.5kw

Suitable power supply

380V/50Hz

380V/50Hz

380V/50Hz

Weight(approx)

2100kg

2300kg

2600kg

Overall dimension(L*W*H)

2850*2150*1350(mm)

2850*2350*1350(mm)

2850*2650*1350(mm)



  Zhejiang Bangtai Machine Co.,Ltd.  (Form: Dongfeng Machine Industrial Co.,Ltd.)  was built in 1987,  located in Zhejiang Ruian city —— the base of plastic packaging machines of China. Is a old and professional  manufacturer  for  plastic packaging machines.
         We are engaged in manufacturing Film Blowing Machine, Bag-making Machine, Printing Machine, bubble film making machine,Recycling  Machine and so on complete sets of plastic packaging machines and equipments.Our machines have been exporting  to  East  Europe,  North America, South America, South-east Asian, Africa, the Middle East  and so on,  which  without  any exception, have been given good accomplishment by our customers and consumers.
       Zhejiang Bangtai Machine Co.,Ltd. covers 14000 square meter, over 11000 square meter of  which is  building  area, consisting
over 200 staffs, 30 engineer for technical support. With the  concept of “customers the first, reputation the life”, we follow scientific management system in every proceeding, each machine is after strict testing before its delivery.
       Zhejiang Bangtai Machine Co.,Ltd.now win a big market both in domestic and overseas after 20 years efforts  with  powerful technical support and complete service system. We will sincerely do our best to offer best quality and service to every customer and consumer.
