Product Details:
Payment & Shipping Terms:
|
| Material: | HDPE. .LDPE. CACO3 | Screws: | High Speed Bimetalic Screw |
|---|---|---|---|
| Capacity: | 80kgs | HEAD: | ABA THREE LAYERS |

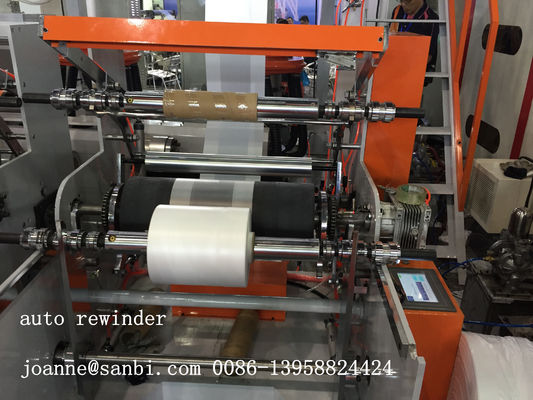

| Rewinder: | Single/double Rewinder | ||
| High Light: | Plastic Film Blowing Machine,High Speed Film Blowing Machine |
||
CE ABA Three layer co-extrusion Blow Film Extrusion
Quick Detail:
3 Layers Co-extrusion Film Blowing Machine
1) ABA, Three layers head
2) two screws co-extrusion
3) can mix CaCo3 Save PE material
4) cheaper than ABC three layers machines.
Main technical parameter:
|
Model |
ABA 600 |
ABA 800 |
|
Screw Diameter |
Ф50×2 |
Ф55×2 |
|
Screw Ratio L/D |
30:1 |
30:1 |
|
Screw Speed |
15-120r/min |
15-120r/min |
|
Main Motor Power |
15Kw×2 |
15Kw×2 |
|
Extrusion Output |
60kg/h |
80kg/h |
|
Range of Die |
Ф100 |
Ф100 |
|
Single-sided Thickness of Film |
0.01-0.10mm |
0.01-0.10mm |
|
Max. Folding Width of Film |
800mm |
800mm |
|
Electric Total Capacity |
50Kw |
50Kw |
|
Overall Dimension |
5000×3200×4200mm |
5000×3500×5000mm |
|
Weight of Machine |
3T |
4T |
Description:

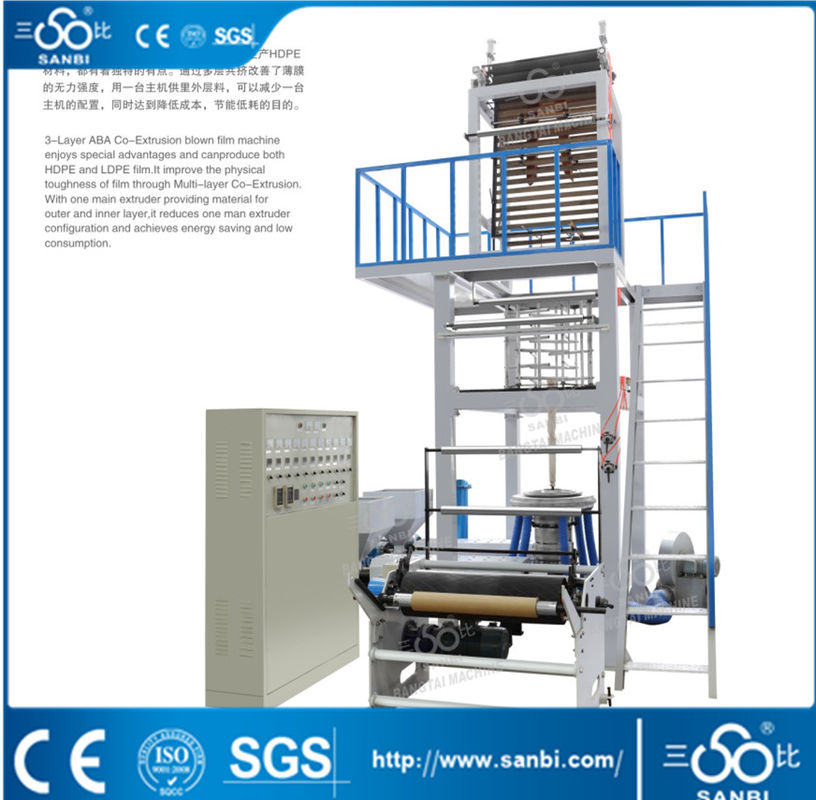

3-layers ABA co-extrusion blowing film machine enjoys special advantages and can produce both HDPE and LDPE Film. it improve the physical toughness of film through multi-layers co-extrusion. with one main extruder providing material for outer and inner layer. it reduces one man extruder configurations and achieves energy saving and low consumption.
Applications:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
gurations and achieves energy saving and low consumption.
Competitive Advantage:
