Product Details:
Payment & Shipping Terms:
|
| Product Application: | Coreless Garbage Bag | Product Application: | Coreless Garbage Bag |
|---|---|---|---|
| Control System: | Full Automatic | Control System: | Full Automatic |
| Stage: | Double Lines | Mchine Type: | Sealing Machine |
| Stage: | Double Lines | Material: | HDPE LDPE |
| Mchine Type: | Sealing Machine | Material: | HDPE LDPE |
| High Light: | polythene bag making machine,automatic bag making machine |
||
bag making machine , plastic bag making machine , garbage bag production , coreless garbage bag

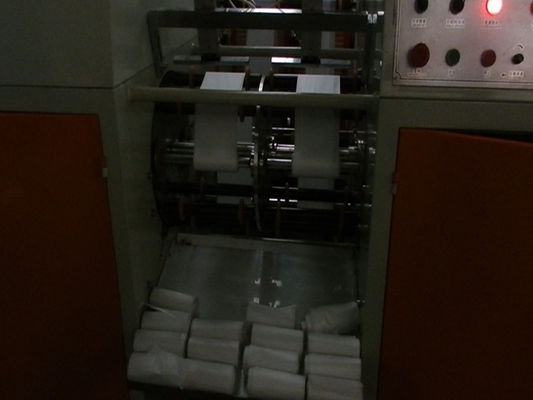

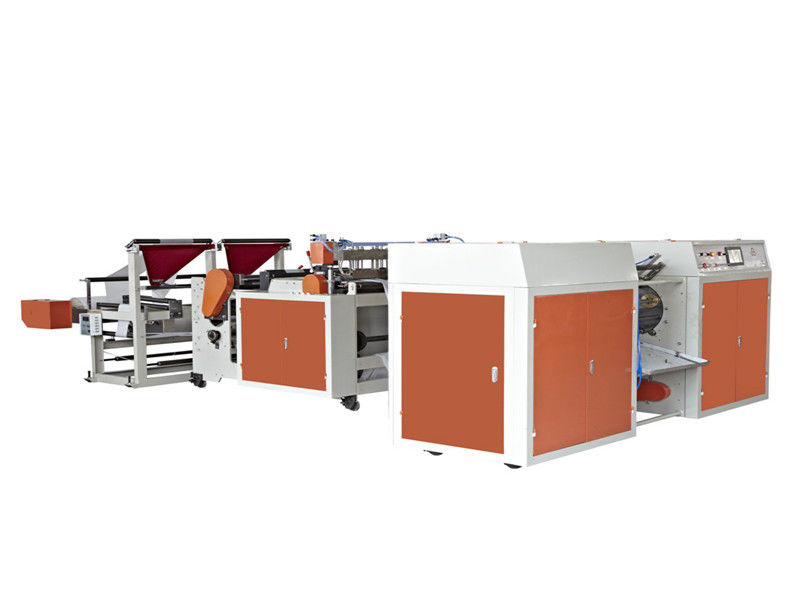

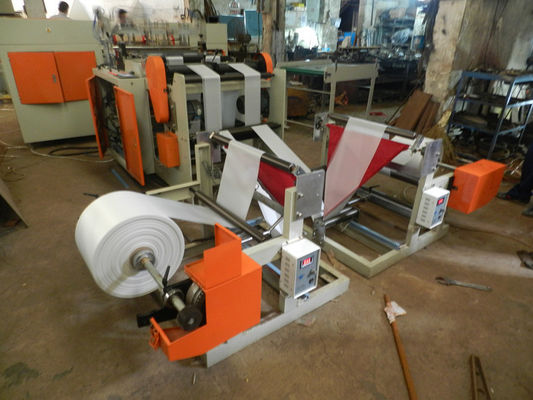

Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
1.Performance and Characteristics
The machine is adopts coreless rewinder. automatic roller changer, synchronous foling & feeding , double roller synchronous feeding not strain . Control by Panasonic motor inverter , high speed & precise , it can produce two lines film at one time . High efficiency and save.
2. Main Technical Parameter
|
Material type |
LLDPE / LDPE / HDPE |
|
Production speed |
70-160pcs*2 |
|
After fold bag width |
100-260mm |
|
Loading film width |
200-550mm |
|
Bag length |
200-1000mm |
|
Film thickness |
0.008-0.02mm |
|
Total power |
6kw |
|
Overall dimension |
Overall dimension |
|
Main motor |
2.2kw |
|
Rewinder changer |
0.75kw*2 |
3. Main Parts
| 1 |
1.5kw Panasonic servo motor |
| 2 |
inverter.Control system |
| 3 |
feeding part adopts auotomatic EPC control.dot cutter asopts micro-computer contril |
| 4 |
rewinder part adopts PLC program control system |
| 5 |
Turning part:main part 1.1kw AC frequency control |
| 6 |
feeding EPC motor 2 sets |
| 7 |
feeding DC motor, rewinder 0.75kw AC frequency control, roll changer DC motor |
| 8 |
roll pulling out by magnet valve pneumatic control |
4.Competitive Advantage:
1. The twenty seven years experence to manufacture this machine
2. More 30 years professional engineers service in many countries,
3. Machines with quality guarantee for one year, life-long maintenance.
4.Created honors: The national igh tech-enterprises,
The national torch-planning project commitments to corporate
Famouse trademarks in Wenzhou
Ten pcs provincial new products etc
5.Professional development group continuously improves and upgrades new products and new technologies.
6.Undertake various non-standard machinery, solve the customers' special requirements.
7. High speed,hige stable full automatic completely process lines
