Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE

China Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE supplier
Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE supplier Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE supplier Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE supplier Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE supplier

Large Image :  Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE ISO9001
Model Number: SJ-50X2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: standard wooden package
Delivery Time: around 30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets / month
Detailed Product Description
Material: HDPE LDPE Screw Speed: 10-100 R/min
Film Color: Double Color Color Type: Stripe Color
High Light:

plastic blow molding machine

,

plastic Blowing Machinery

film blowing machine , film extrusion machine , blown film extrusion machine , film extruder , plastic blowing machine ,  plastic extru

Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE






Characteristics:

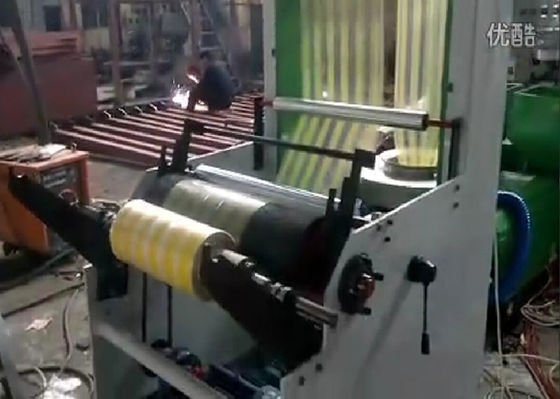

The cylinders and the screw stems of double color extruder are made of high quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment . the auxiliary machine can be freely adjusted within the limits of 500 - 700mm according to the technological requirements of different materials , and has it fitted with a plug-in plate mechanism for making vest bag. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.





Use:

It is used for blowing the various plastic film of low density polyethylene ( LDPE ) and high density polythylene ( HDPE ) color striped plastic film, etc. Which are widely used for packing food, fruit ,garments,textile,daily necessities and other civil and industrial products.





1. Main Technical Variables:



Model

SJ-45X2/600

SJ-50×2/800

SJ-55×2//1000

Screw Diameter

45MMX 2

50mmx2

55mmx2

Screw Ratio

(L/D) 28:1

L/D28:1

L/D28:1

Screw Speed

10-100r/min

10-100r/min

10-100r/min

Power of Main Motor

15KW

15KW

22KW

Power of traction main motor

1.1kw

1.1kw

1.5kw

Heating power(kw)

15kw

18kw

25kw

Main Output

35kg/h

50kg/h

65kg/h

Max.Folding Width of Film

100-600

150-800mm

300-1000mm

Single-sided Thickness of Film

0.008-0.1mm

0.008-0.1mm

0.008-0.1mm

Overall Dimensions

4800x1900x4100mm

5500x2100x4700mm

6500x2300x4900mm

Die diameter

 70mm

 100mm

 150mm



2. standard specification:



1

Material of Screw and barrel

38CrMoAIA material ,

 have been nitrized and processed in a precision way

2

Main  Motor

With inverter control,  Chinese good brand

3

Gear box

International standard  ( made in China)

4

Air ring

Standard hard tooth surface

5

With Air compressor

Made in China

6

Heating

stainless steel

7

Gusset device

Made of Wooden

8

Winder

Single winder

9

Motor for rewinding

10Nm*3 moment motor control

10

Embossing roller

Standard



AUTO LOAD

Automatice to suck raw material to hopper ,

will reduce manpower

UP AND DOWN



Air shaft



Cylinder control the traction take off device



CORONA



ALUMINIUN HEATER



EXTRA SCREW AND BARREL



Extra embossing roller





3.Final Product

Mini Stripe PE Plastic blow molding machine Cylinders FOR LDPE
