Product Details:
Payment & Shipping Terms:
|
| Color: | Orange | Raw Material: | HDPE,LDPE,LLDPE |
|---|---|---|---|
| Lift: | Up And Down | Application: | Packing Bags For Food Stuff,clothing,rubbish Bag And Vest Ones |
| Condition: | 2014 NEW | Operate Person: | 1 Person |
| Voltage: | 380v | ||
| High Light: | plastic blow molding machine,plastic Blowing Machinery |
||
Mini PE Blown Film Extrusion Machine For Shopping Bag Making
Purpose:
Mini Type PE Plastic Film Extrusion Blowing Machine is characterized by compact structure, durable service, easy commissioning and operation, whole loading and unloading. It is specially used in blowing film of small size.
Description:
| 1 | Its extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. |
| 2 | Hence it is sound in hardness,durable in corrosion resistance. |
| 3 | The specially-designed screw is of sound quality in plasticizing,which helps increase the prodution capacity. |
| 4 | It is applied to blowing the plastic films like low density polytene(LDPE),high density polytene(HDPE) and linear low density polytene(LLDPE). |
| 5 | It is widely applied to producing the packing bags for foodstuff,clothing,rubbish bag and vest ones. |
Technical Parameter:
| Model |
D50 | D55 |
| Diameter of Screw(mm) | φ 50 | φ 55 |
| Max. Width of Folded Film (mm) | 100-600 | 200-800 |
| Single-face Thickness of Film(mm) | 0.01-0.10 | 0.01-0.10 |
| Max. Extrusion(kg/h) | 35 | 50 |
| L/D | 28: 1 | 28: 1 |
| Power of Main Motor(KW) | 7.5-11 | 11-15 |
| Power of Traction Motor(KW) | 1.1 | 1.1 |
| Heating Power(KW) | 11 | 13 |
| Overall Dimension (mm) | 3800× 1900× 3000 | 5500× 2100× 3500 |
| Weight(T) | 1.5T | 2T |

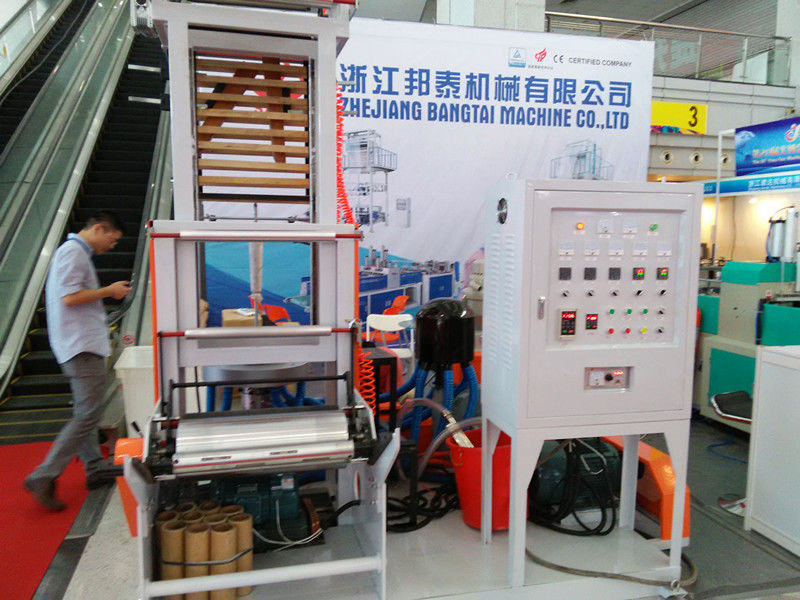

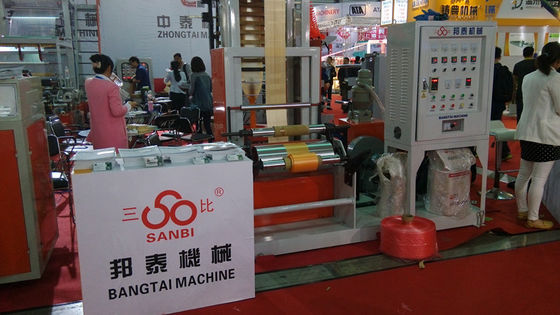

Picture Description:
NOTE: Before send the inquiry , Please take minutes to read the following qustions :
|
Machine name |
Specifications required |
|
Film blowing machine |
a.Max film width
b.Which kind of materials? HDPE,LDPE,LLDPE,PP,PVE etc.
c.Required output ? |
|
|
|
|
For other machines,please contact us for details. |
|
