Product Details:
Payment & Shipping Terms:
|
Operate Person: | 1 Person | Value: | Cheap |
---|---|---|---|
Application: | Packing Bags For Food Stuff,clothing,rubbish Bag And Vest Ones | Condition: | 2014 NEW |
Color: | Disigned By Customer | Voltage: | 380v Or 220V |
Raw Material: | HDPE,LDPE,LLDPE | Value: | Cheap |
Application: | Packing Bags For Food Stuff,clothing,rubbish Bag And Vest Ones | Condition: | 2014 NEW |
High Light: | plastic blow molding machine,blown film equipment |

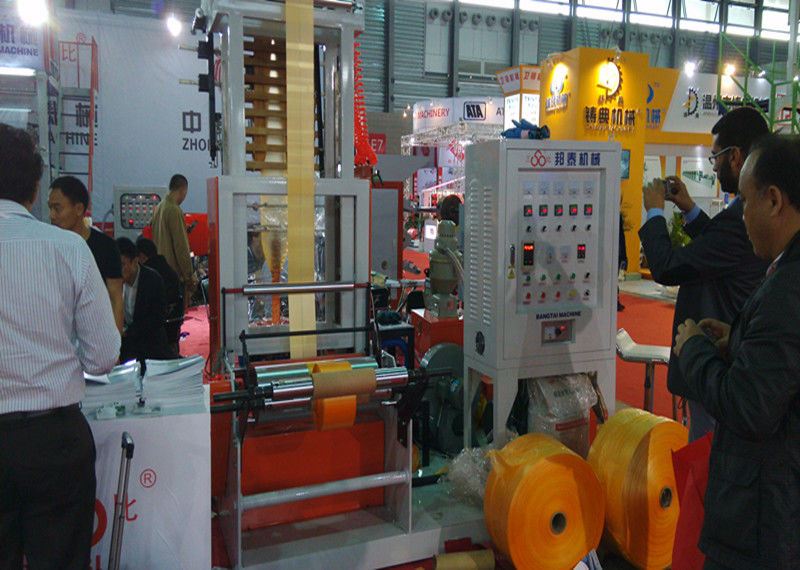

HDPE / LDPE Blown Film Extrusion Machine Multilayer With High Speed
Description:
1 | Its extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. |
2 | Hence it is sound in hardness,durable in corrosion resistance. |
3 | The specially-designed screw is of sound quality in plasticizing,which helps increase the prodution capacity. |
4 | It is applied to blowing the plastic films like low density polytene(LDPE),high density polytene(HDPE) and linear low density polytene(LLDPE). |
5 | It is widely applied to producing the packing bags for foodstuff,clothing,rubbish bag and vest ones. |
Technical Parameter:
Model |
D50 | D55 |
Diameter of Screw(mm) | φ 50 | φ 55 |
Max. Width of Folded Film (mm) | 100-600 | 200-800 |
Single-face Thickness of Film(mm) | 0.01-0.10 | 0.01-0.10 |
Max. Extrusion(kg/h) | 35 | 50 |
L/D | 28: 1 | 28: 1 |
Power of Main Motor(KW) | 7.5-11 | 11-15 |
Power of Traction Motor(KW) | 1.1 | 1.1 |
Heating Power(KW) | 11 | 13 |
Overall Dimension (mm) | 3800× 1900× 3000 | 5500× 2100× 3500 |
Weight(T) | 1.5T | 2T |
NOTE: Before send the inquiry , Please take minutes to read the following qustions :
Machine name |
Specifications required |
Film blowing machine |
a.Max film width
b.Which kind of materials? HDPE,LDPE,LLDPE,PP,PVE etc.
c.Required output ? |
|
|
For other machines,please contact us for details. |
