Product Details:
Payment & Shipping Terms:
|
| High Light: | Plastic Film Blowing Machine,plastic blow molding machine |
||
|---|---|---|---|

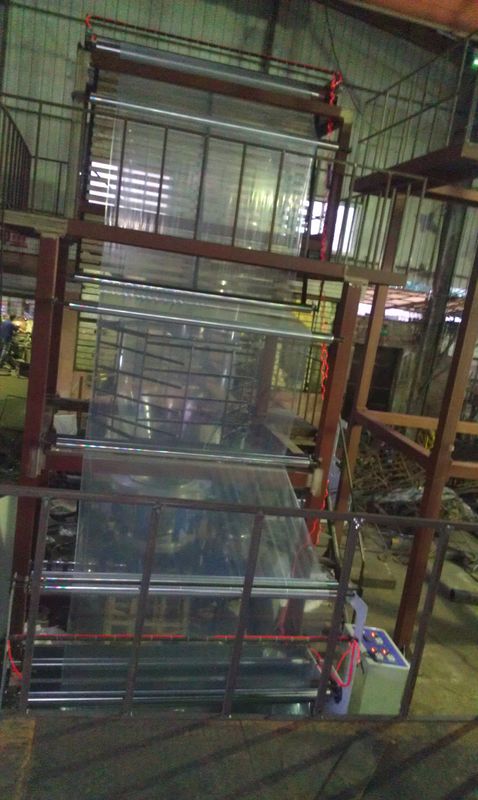

High speed PE Film Blowing Machine Heat shrinable , blown film equipment
Quick Detail:
1. material: PE
2. Feature :agricultural packing film
3. high output machine with most competitive price
|
Condition |
New |
|
Application |
Film |
|
Plastic Processed |
PE |
|
Blow Moulding Type |
Extrusion Blow Moulding |
|
Automatic |
Yes |
|
Place of Origin |
Zhejiang, China (Mainland) |
|
Brand Name |
SANBI |
|
Model Number |
SJ-C75/90/105/120 |
|
Voltage |
380V / as request |
|
Power(W) |
70/85/120/150KW |
|
Dimension(L*W*H) |
10200*4200*12000mm |
|
Weight |
5.5/8/10/12T |
|
Certification |
ISO 9000 ,CE |
|
Warranty |
1 Year |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
|
Certificate |
CE,ISO 9000 |
|
Material |
HDPE,LDPE ,LLDPE |
|
Product Type |
Pe Film |
|
Processing Type |
Extruding Machine |
|
quality |
top quality |
|
service |
high quality service |
|
Plastic Film Blowing Machine |
Plastic Film Blowing Machine |
|
type |
Film Blowing Machine |
Description:
It is used for blowing high low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
The screw and material barrel adopt 38 chrome- molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Applications:
Its extruder, cylinder and screw are made of quality alloy steelwhich have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like LDPE, HDPE and LLDPE, widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags.
Specifications:
|
Model |
SJ-C75 |
SJ-C90 |
SJ-C105 |
SJ-C120 |
|
Diameter of Screw(mm) |
75 |
90 |
105 |
120 |
|
L/D Ratio of Screw |
28:1 |
28:1 |
28:1 |
28:1 |
|
Screw Speed(r/min) |
10-100 |
10-100 |
10-100 |
10-100 |
|
Power of Main Motor(kw) |
37 |
45 |
55-70 |
75-95 |
|
Max. Output(kg/h) |
120 |
160 |
190 |
220 |
|
Max. Lay-flat Width of Film(mm) |
1500 |
2000 |
2200 |
2500 |
|
Thickness of Film(mm) |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
|
Total Power(kw) |
46 |
60 |
78 |
95 |
|
Weight(T) |
4 |
8 |
10 |
12 |
|
Overall Dimension(mm) |
5200*2800*6000 |
6200*3400*8000 |
6200*4000*9000 |
6800*4500*10000 |
