1. Quick Detail:
a. Automatically computer control over the entire process
b. From film roll to final bag, one process flow.
c. (Step) Servo motor, easy to adjust the bag length and the production speed.
d. Automatic film feeding, tension automatically controlled by torque motor.
e. Automatically stop when film feeding blocks or bags jam.
f. High efficiency, save manpower and time.
g. Equipped with heat sealing and cold cutting device.
h. For flat bag, shopping bag. Garbage bag making
I. Two layers ,four lines Automatic punching cylinder device make t-shirt bag improve the capacity of produces .
2. Description:

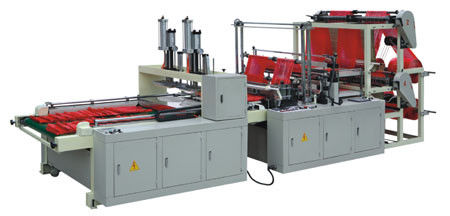

This is High Speed Automatic heat sealing cold cutting Bag Making Machine applied to manufacturing and printing the uncolored flat opening and vest bags made of HDPE, LDPE roll film. It is automatically controlled by the computer completely. The user can optional it by the touch panel (PLC) and with automatic punching device for completely t-shirt bag making
The main motor adopts variable frequency motor which is more power-efficient and more freely for speed-regulate. With good performance, the color code tracker can make the sealing and cutting length more accurately, and the error smaller. It also adopts advanced computer to adjust length, freely and accurately.
3. Applications:
- HDPE .LDPE T-shirt bag ,Shopping bag ,garbage bag .
- food packaging:cakes,candies,roasted seeds and nuts,
- biscuits, milk powder, salt,tea, etc.;
- bacteria bags,convenient bags,storage bags;
- woven inner bag
5. Specifications :
Model | SHXJ-D800 | SHXJ-D900 | SHXJ-D1000 |
Width of sealing &cutting(mm) character | 150-300x 4line | 150-350x 4line | 150-400x 4line |
Bag width(printed color) | 150-700mm x 2 | 150-800mm x 2 | 150-900mm x 2 |
Length of sealing & cutting(mm) character | 200-600x 4 | 200-600x 4 | 200-800x 4 |
Speed of bag-making(pc/min) | 30-100pcs/minx4 | 30-100pcs/minx4 | 30-100pcs/minx4 |
Thickness of film | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm |
Number of strip(pc) | 2 or 4 | 2 or 4 | 2 or 4 |
Power of motor(kw) | 1.5kw(4grade) | 1.5kw (4grade) | 1.5kw(4grade) |
G.Weight(kg) | 1700 | 1800 | 1900 |
Outline dimension(L×W×H)mm | 5000×1500×2000 | 5000×1600×2000 | 5000×1800×20000 |
Step motor | 2pcs | 2pcs | 2pcs |
Photocell | 2pcs | 2pcs | 2pcs |
6. Competitive Advantage:
a. The twenty-seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c. Machines with quality guarantee for one year, life-long maintenance.
d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
e. Professional development group continuously improves and upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers' special requirements.
