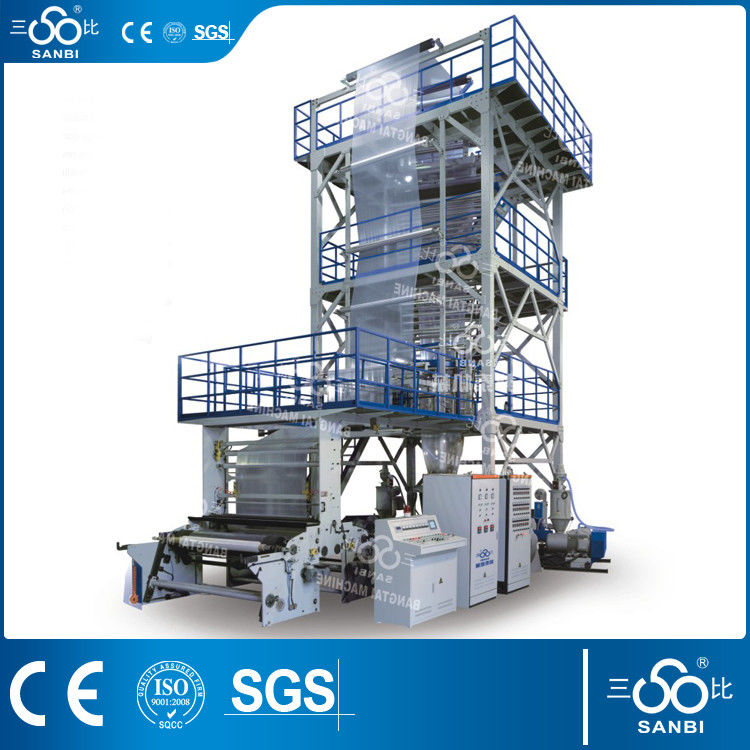

MSJ55-GS130,MSJ60-GS1500, MSJ65-GS1700, MSJ70-GS2200 Three Layer Film Blowing Machine With IBC System
Quick Detail:
3 Layers Co-extrusion Film Blowing Machine
1) IBC, horizontal+/-180
2) Auto winder
3) Up and down bubble fixer
4) auto loader
|
Condition |
New |
|
Application |
Film |
|
Plastic Processed |
PE |
|
Blow Moulding Type |
Extrusion Blow Moulding |
|
Automatic |
Yes |
|
Place of Origin |
Zhejiang, China (Mainland) |
|
Brand Name |
SANBI |
|
Model Number |
MSJ55-GS1300-1800 |
|
Material |
LDPE,HDPE,MLLDPE, EVA etc. |
|
Layers |
3-5layers |
|
Extusion |
Co-extrusion |
|
haul-off |
rotary traction system |
|
Die head |
IBC System |
|
Winder |
Auto winders |
|
Certificate |
CE,ISO |
Description:
Haul-off unit is oscillating reverse by horizontal±180..Its structure is reasonable, so it economizes lots of energy and it is easy to maintain. By means of the reversing haul-off unit, films can be produced without requiring rotating die head, so the structure of die head is simplified. Reversing haul-off unit eliminates many problems of ling channel for the rotating die head, difficult sealing for the melt, compound leakage being easy, unsymmetrical heating, difficult maintenance, macro film tolerance and so on Haul-off unit reduces the degree of difficulty for recipe of the multi-layer co-extruded product and production technical processing control, if the blowing film line is with IBC (Internal Bubble cooling system), it can produce film with the quality of more high-grade transparency and better all-round performance. The produced film is very flat, reel is high-quality by the use of reversing haul-off units. The film can meet the demand for the high-speed printing.
Applications:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, anti-humid, anti-freeze, anti-rain, anti-rost, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meats, salt vegetables, fresh milk, drink and so on.
Specifications:
|
Type |
MSJ55-GS1300 |
MSJ60-GS1500 |
MSJ65-GS1700 |
MSJ70-GS2200 |
|
|
Diameter of screw |
1200 |
1400 |
1600 |
|
|
|
L/D |
3 |
3 |
3 |
3 |
|
|
Film thickness (mm) |
0.02-0.12 |
0.02-0.12 |
0.02-0.12 |
0.02-0.12 |
|
|
Max. output (kg/h) |
120 |
150 |
180 |
240 |
|
|
Raw material |
MLLDPELLDPELDPEEVA |
||||
|
Screw diameter (mm) |
55×3 |
60×3 |
65×3 |
70×3 |
|
|
Screw L/D ratio L/D |
28:1 |
28:1 |
28:1 |
28:1 |
|
|
Screw Max. rotation Speed (r/min) |
15-100 |
15-100 |
15-100 |
15-100 |
|
|
Extruder driving power (kw) |
22×3 |
30×3 |
37×3 |
45×3 |
|
|
The way of esteem changing of extruder |
|
Manual twin-station changing screen quickly |
|||
|
Die structure |
IBC |
With or without IBC(Internal Bubble Cooling system) |
|||
|
Air-ring structure |
|
Dual tuyere |
|||
|
Reversting haul-off system |
Film turning mode |
|
Horizontal |
||
|
Angle of reversing |
±180 |
±180 |
|||
|
Take-off Wide-up speed (m/min) |
45 |
45 |
45 |
45 |
|
|
Total Power (kw) |
85 |
110 |
140 |
220 |
|
|
Overall dimensions (mm) |
1000×6000×9000 |
1000×600×9500 |
1100×7000×10000 |
1300×7000×12000 |
|
|
Weight (T) |
15 |
20 |
25 |
30 |
|
