6 Color Flexographic Printing Machine

China 6 Color Flexographic Printing Machine supplier

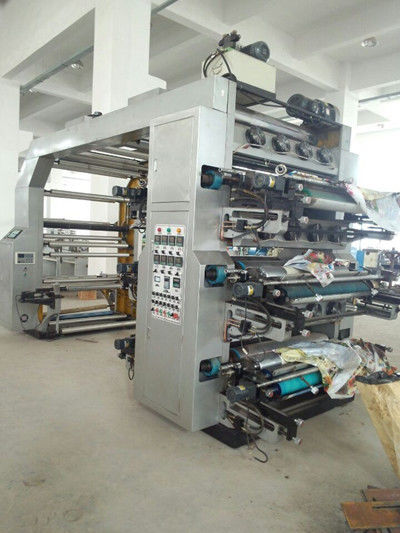

Large Image :  6 Color Flexographic Printing Machine

Product Details:

Place of Origin: Zhejiang,China
Brand Name: SANBI
Certification: CE,ISO9001:2000,SGS
Model Number: HYT-6600-61800

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD10,000- USD50,000
Packaging Details: standard seaworthy packing
Delivery Time: 30-60 days
Payment Terms: TT OR L/C
Supply Ability: 20 Set/month
Detailed Product Description
High Light:

Flexo Printing Machine

,

Multicolor Printing Machine



6 Colors Flexographic Printing Machine For Plastic Film



Quick Detail:



- Hydraulic lift control printing roller

- Ceramic Anilox roller  6PCS

- Single doctor blades  6PCS

- Single way diaphragm pumps 6PCS

- Automatic tension controller (Taiwan Brand)

- Automatic EPC device (Edge position controller)

- High speed 60-80m/min



Description:

1.  Low speed and full load startup; Stable running by tension control when increasing and decreasing speed, noise is decreased
2.  High dots presentation rate under high speed; Clear and vivid stratification of screen printing; Strong stereo effect and accurate registering.
3.  Aluminum roller adopts the Japan semi-sealing small bearing; Flinty oxidation, static and dynamic balancing treatments are conducted; Low resistance and small flop.
4.  The special made modulus angular gears adopted; Accurate printing size and full printing specifications (5mm is a spec)
5.  With the air exhaust, blowing and heating settings; The heating system adopts the central thermostatic control system and group management, also with the cold air forming devices.
6.  Printing rolls should keep moving while machine halted
7.  Material holder use air shaft
8.  Autotension control
9.  Unwind with auto deviation correction system (EPC)
10.  EDGE position control
11.  Reversible printing 6 color press for 6+0, 5+1, 4+2, 3+3,2+4,1+5
12. 1 sets of printing cylinder, sizes: 15 inches.





Applications:



This machine is suitable for printing such packing materials as HDPE, LDPE polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.





Specifications:



Printing width

600mm

800mm

1000mm

1200mm

1400mm

1600mm

1800mm

Printing color

6 color/colors  ( PC  : 6+0  , 5+1  , 4+2, 3+3,2+4,1+5 )


Printing material

LDPE: 28  - 100μ m , LDPE: 30  - 100μ m , LLDPE: 25 -100μ m ,CPP: 20  - 60μ m

PP: 23  - 65μ m, NY: 20  - 50μ m , PETP: 16 ~ 60μ m ,OPP: 18 -70μ m
BOPP: 17  - 60μ m , OPA: 20 -60μ m , Plating film: 30 -80μ m
Aluminum: 25 ~ 80μ m ,Cellophane: 30- 150g /m 2 , Paper: 30 -150g /m 2

Printing length

7’’-40’’

Printing plate lifting system

Pneumatic/Hydraulic press control

Mechanical speed

80m /min

Printing speed

60m /min

Ceramic  Anilox cylinder

400-1000LPI( Japan )

Doctor blade

Single

Register precision

Longitude: ± 0.25mm, Transverse: ± 0.25mm

Rewinder/

Unwinder DIA

φ 800

Master motor

3.7kw

3.7kw

5.5kw

5.5kw

11kw

11kw

15kw

unwinding

motor

1.5kw

2.2kw

5.5kw

5.5kw

7.5kw

rewinding

motor

1.5kw

2.2kw

5.5kw

5.5kw

7.5kw

Electrical

heater

14kw

16kw

20kw

22kw

26kw

32kw

38kw

Blower of

heater

1.1kw

1.1kw

1.5kw

1.5kw

2.2kw

2.2kw

3.0kw

Blower of

nature wind

0.75KW

0.75KW

1.1KW

1.1kw

1.5kw

1.5kw

2.2kw

Inking

motor

370w


370w


370w

370w

750w

750w

750w

Bearing

Japan ( NSK)











Unilateral

bearing

ASNU( Germany )











NET

Weight

4500kg

4750kg

5000kg

5500kg

5800kg

6000kg

6200kg

Master

Power

45kw

54KW



68KW



82KW

Dimension
(L x Wx H)

4.8m x 1.8m x2.8m


4.8mx2.0mx 2.8m

4.8mx 2.2mx

2.8m

4.8mx 2.4mx

2.8m

4.8mx 2.6mx

2.8m

4.8mx 2.8mx

2.8m

4.8mx 3.0mx

2.8m



Competitive Advantage:


a. The twenty-seven years experence to manufacture this machine

b. 30years professional engineers service in many countries,

c. Machines with quality guarantee for one year, life-long maintenance.

d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

e. Professional development group continuously improves and upgrades new products and new technologies .

f. Undertake various non-standard machinery, solve the customers' special requirements.
