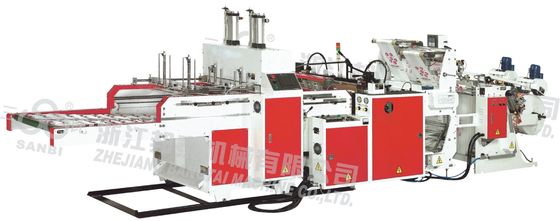

High Speed full Automatic T-shirt Bag Making Machine
Quick Detail:
|
Place of Origin: |
China |
|
Brand Name: |
SANBI |
|
Certification: |
CE, ISO ,SGS |
1. LDPE.HDPE hotsealing hot cutting t-shirt bag making.
2. Full automatic controlled by the computer (or touch screen) completely
3. Two sealing knifves. Two photocell. Two auto punching cylinders.two step motor (servo motor )and driver feeding
4. Two inveter motor driven system in unwind unit and it can automatically change the feeding speed based on the machine's speed requirement.
5. providing the highest production speed and output.
6. Equipped the multi auto alarms with automatic stop design.
7 The whole pile of bags has the "Rocking System", which would not make the 2 pcs of bags sealing stick together.
Description:
This is a special design of pratical type T-Shirt bag making machine, operating in fully automatic system.
This machine including inveter motor driven system in unwind unit, EPC control for two line and finish
product folding unit, providing the highest production speed and output.
Special design servo-driven bag feeding is easy to operate.
Equipped the multi auto alarms with automatic stop design.
High efficiency on production.
The whole pile of bags has the "Rocking System", which would not make the 2 pcs of bags? sealing
stick together
Applications:
- HDPE .LDPE T-shirt bag
- Shopping bag with handle
- garbage bag with handle
Specifications :
|
Model |
BTHQ-450X2 |
|
|
Bag Size |
width (mm) |
max. 400 x 2 |
|
|
Length(mm) |
max. 650 |
|
Max. Production Speed (cycles/min) |
max. 230-250pcs/min |
|
|
Thickness of Film (mm) |
0.008~0.035 |
|
|
Main motor power |
2.2kw |
|
|
Servo motor |
2.0kw x2 pcs |
|
|
Unwinder motor power |
0.75kw *2pcs |
|
|
Heaters (kw) |
8 |
|
|
Power Required (kw) |
11 |
|
|
Machine Dimensions |
L(m) |
6.6 |
|
|
W(m) |
1.85 |
|
|
H(m) |
1.8 |
|
Machine weight (kg) |
2700 |
|
|
Gross Weight (kg) |
3100 |
|
|
Air Compressor(not included) (hp) |
10 |
|
Competitive Advantage:
1. The twenty-seven years experence to manufacture this machine
2. More 30years professional engineers service in many countries
3. Machines with quality guarantee for one year, life-long maintenance.
4. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
5. Professional development group continuously improves and upgrades new products and new technologies .
6. Undertake various non-standard machinery, solve the customers' special requirements.
7. High speed,hige stable full automatic completely process lines
