Economic ABA Three layers Co-extrusion Film blowing machine

China Economic ABA Three layers Co-extrusion  Film blowing machine supplier

Large Image :  Economic ABA Three layers Co-extrusion Film blowing machine

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE, ISO9001
Model Number: SJABA 600 / SJ-ABA800

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: 20000-35000USD
Packaging Details: wooden package
Delivery Time: within 30 workdays
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30 sets of month
Detailed Product Description
Material: HDPE,.LDPE. CACO3 Screws: Double Layers Co-extrusion Screw
Capacity: 60-80kgs Head Model: ABA Three Layers Type
Rewinder: Single / Double Rewinder Certificate: CE

CE Economic ABA Three layers Co-extrusion  Film blowing machine


Quick Detail:
3 Layers Co-extrusion Film Blowing Machine

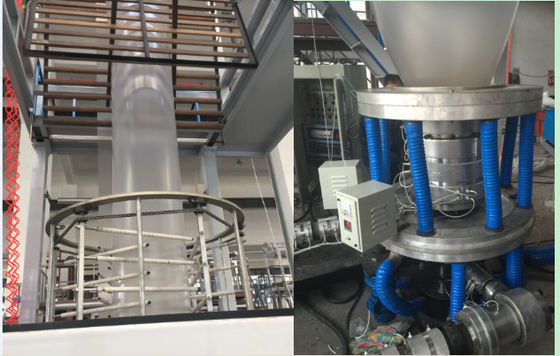

1.ABA Three layers die head

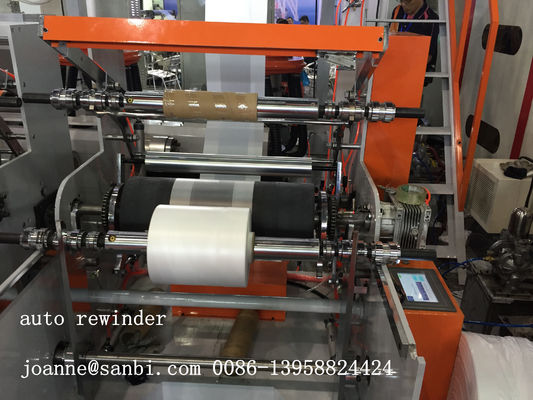

2.  single or double rewinder
3.mix CaCo3 save PE material
4. economic , cheaper than ABC type three layers machine


Condition

New

Application

Film

Plastic Processed

pe

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

Place of Origin

Zhejiang, China (Mainland)

Brand Name

SANBI

Model Number

SJ-ABA600/  SJ-ABA800

Material

LDPE,HDPE, Can mix CaCo3

Layers

3 layers

Extusion

Co-extrusion

Capacity

60-80KGS

Die head

ABA three layers head

Winder

Friction rewinder

Certificate

CE,ISO



Description:
 3-layers ABA co-extrusion blowing film machine enjoys special advantages and can produce both HDPE and LDPE Film. it improve the physical toughness of film through multi-layers co-extrusion. with one main extruder providing material for outer and inner layer. it reduces one man extruder configurations and achieves energy saving and low consumption.


Applications:



The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
bsp;film through multi-layers co-extrusion. with one main extruder providing material for outer and inner layer. it reduces one man extruder configurations and achieves energy saving and low consumption.




Specifications:

Model

ABA  600

ABA  800

Screw Diameter

 50*2

 55*2

Screw Ratio L/D

30:1

30:1

Screw Speed

15-120r/min

15-120r/min

Main Motor Power

15Kw*2

15Kw*2

Extrusion Output

60kg/h

80kg/h

Range of Die

100

100

Single-sided Thickness of Film

0.01-0.10mm

0.01-0.10mm

Max. Folding Width of Film

800mm

800mm

Electric Total Capacity

50Kw

50Kw

Overall Dimension

5000*3200*4200mm

5000*3500*5000mm

Weight of Machine

3T

4T



Competitive Advantage:



Economic ABA Three layers Co-extrusion  Film blowing machine


Economic ABA Three layers Co-extrusion  Film blowing machine
