600mm PVC Heat Shrink Pe Film Blowing Machine For Packing Foodstuff

Good quality PP Film Blowing Machine for sales
Good quality PP Film Blowing Machine for sales
Simple operation.reduce cost ,our workers very like Film Blowing Machine. SANBI is a reputable company, we look forward to next cooperation.

—— Mr.CASTRO QUIÑONES JUAN FERNA

We ordered some Film Blowing machine and Bag Making Machine,and the quality is very good,delivery fast and good service.

—— Mr.Nagy Jozsef –Hungary

Appreciate your high quality Products and excellent service.

—— S K S CORPORATION-Dhaka

I’m satisfied with Recycling machine. Fast delivery and good after-sale service. Besides,Joanne is a nice guy!

—— LIEN CHINY ENTERPRISE -TAIWAN

Good! BANGTAI products are of good quality and reasonable in price. I’d like to cooperate with such partner

—— Piyumi Pack-Sri Lanka Mobile:

I'm Online Chat Now

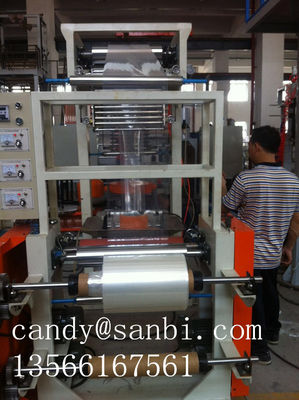

600mm PVC Heat Shrink Pe Film Blowing Machine For Packing Foodstuff

China 600mm PVC Heat Shrink  Pe Film Blowing Machine For Packing Foodstuff supplier

Large Image :  600mm PVC Heat Shrink Pe Film Blowing Machine For Packing Foodstuff

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: SANBI
Certification: CE ISO9001
Model Number: BT-600

Payment & Shipping Terms:

Minimum Order Quantity: ONE SET
Price: USD 17000 SET
Packaging Details: WOODEN PACKAGE
Delivery Time: 30 WORKDAYS
Supply Ability: 30 SETS ONE MONTH
Detailed Product Description
Raw Material: PVC Width: 550mm
Output: 30kg/h

600mm PVC Heat Shrink  Pe Film Blowing Machine For Packing Foodstuff





The machine's set adopts to revolve a mold head and changes the Pin adjust soon and automatic

constant temperature control etc. item technique, the production come out of product petrochemistry

 good, the degree of thickness even degree, clarity of thin film, neat degree, constringency rate...etc.

various quality index signs attain printing class the technique standard of the thin film.


The machine's set organization tightly packed, the operation is easy, mainly from as follows part of

constitute:Extrude machine, revolve a mold head, cool off breeze wreath, the first to lead, hot water

box and already set set, the second lead(dynamoelectric ascend and descend), double the work

 accept a machine and extrude a machine electricity to control a cabinet and assist a machine electricity

to control a cabinet.

Main technical

Model

BT-600

Suitable Material

PVC

Width range

550mm

Thickness

0.025—0.10mm

Screw diameter

55mm

Screw L/D Ratio

28:1 L/D

Screw/Barrel Material

38 CrMoAIA

Heater capacity

20kw

Auto-thermo Control

6z

Barrel Cooling Fan

0.25kw*2

Driving Motor

15kw

Die Diameter

45-100mm

Air Ring Diameter

550mm

Max. Film Output

20kg/h

Cooling Blower

1.14kw

Take-up Roller Width

600mm

Take-up Motor

1.5kw

Take-up speed

20m/min

Winding motor

10N/m

Tank electric heat

8kw

Machine dimension

800*1500*3800mm

Weight

2000kg



1.main invereter :  NS shanghai brand

2. Traction motor: Zhejiang (by inverter control)

3. Motor:  WEINUO(NANJIN)

4 Screw material: 38 Chrome (Zhejiang Zhoushan)

5. Gearbox: Hard Tooth surface reductions Gearbox ( international standard )-CHANGZHOU

6. Temperature: YUYAO

7. Low-pressure electrical part :Zhengtai

8. air blower: 2.2KW (wuxi)







600mm PVC Heat Shrink  Pe Film Blowing Machine For Packing Foodstuff600mm PVC Heat Shrink  Pe Film Blowing Machine For Packing Foodstuff
