Double Layer PP Polypropylene Plastic Film Blowing Machine , Extrusion Blowing Machine

China Double Layer PP Polypropylene Plastic Film Blowing Machine , Extrusion Blowing Machine supplier

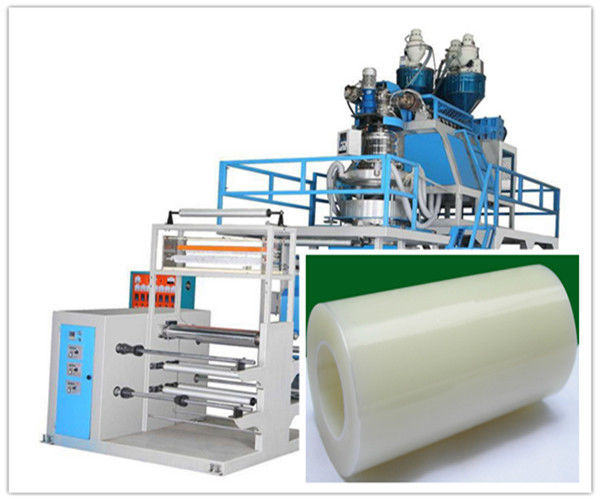

Large Image :  Double Layer PP Polypropylene Plastic Film Blowing Machine , Extrusion Blowing Machine

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE, ISO9001
Model Number: SJF-55,60,70

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: 15000
Packaging Details: Wooden package
Delivery Time: within 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets one month
Detailed Product Description
MATERIAL: PP Application: Film
Blow Moulding Type: Extrusion Blow Moulding Automatic: No
Model Number: SJF-55,60,70





Double Layer PP Polypropylene Plastic Film Blowing Machine , Extrusion Blowing Machine





Specifications:



Model

SJF-55

SJF-60

SJF-70

Diameter of screw

Φ55

Φ60

Φ70

L/D ratio of screw

28:1

28:1

28:1

Lay-flat Width of film(mm)

100-500

100-600

300-800

Thickness of film(mm)

0.01-0.1

0.01-0.1

0.01-0.1

Max. output(kg/h)

30

45

60

Power of main motor(kw)

11

15

18.5

Power of Traction motor(kw)

1.1

1.1

1.5

Length of Traction roller(mm)

550

650

850

Overall Diameter(L*W*H)

4500*2000*3500

4800*2500*3800

5000*2800*4000

Weight(T)

3

4

5






Description:



  1. The machine is suitable for producing PP. It is widely used for packing food, garment, textile, daily necessaries and industrial product.
  2. die head can be turned in 360,it can strengthen the tension and evenness degree of film .
  3. screw and cylinder are all made of 38crmoal alloy, and treated by nitrogen. It has an advantage of great thickness, corrosion resistance and endurance.
  4. die head has been chromized, it’s advantage of screw core structure, melting material extruding evenly, and blowing film smoothing.
  5. cooling equipment is a labyrinth blow pump, which has good effect. Especially it adopts the recycling cooling water system to ensure the best transparent effect.
  6. discharging equipment adopts pressing braking winding equipment and central winding equipment, and it adopts torque motor to adjust, has the merits of smooth film, convenience operation.





Optional parts:



  auto loader

  rotary die head

  double winders

  air shaft

  corona treatment





Applications:



The machine is suitable for producing PP. It is widely used for packing food, garment, textile, daily necessaries and industrial product.
