Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine

China Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine supplier

Large Image :  Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine

Product Details:

Place of Origin: ZHEJIANG OF CHINA
Brand Name: SANBI
Certification: CE ISO9001
Model Number: SJ-50

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: standard wooden package
Delivery Time: around 30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets/ month
Detailed Product Description
Raw Material: PE Plastic Die Head: Rotary Die Head
Power Supply: 380V,3 Phase, 50 HZ/Cycles Line Speed: 100m/min

film blowing machine, film extruder, pe film blowing machine, plastic blown film extrusion machine , film blow mould extrusion machin

Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine





1.Main technical variables



Model

SJ-55

SJ-60

SJ-65

Diameter of Screw

φ55

Φ60

Φ65

Max. Width of Folded Film

200-800

300-1000

300-1200

Single-face Thickness of Film(mm)

0.01-0.10

0.01-0.10

0.01-0.10

Max. Extrusion(kg/h)

75kgs/h

100kgs/h

120kgs/h

L/D

30:1

30:1

30:1

Die head size

Φ80, φ150

Φ120, φ200

Φ150, φ250

Power of Main Motor(kw)

22

37

37

Power of Traction Motor(kw)

1.5

1.5

1.5

Max.line speed(m/min)

100

100

100

Overall Dimension (L x W x H)

6500×2200×4700

7000×2300×5250

7300×2600×5800

Weight(T)

2.5T

3.5T

3.5T

1

Barrel and screw material:  BIMETALIC Screw  and  38CrMoAl barrel

2

Die HEAD : fixed die head with  double vent  air ring

3

Gear box: water cooling reducer, hard tooth surface

AIR BLOWER :5.5KW(Detal inverter control)

5

single winder : automatic rewinding and  automatic changer roll ,control by PLC ,with two air shaft

6

counter of metric

7

Main motor : China motor  With inverter control (China  BRAND)

8

Heating ring : casting -AL material

9

with pneumatic cylinder on top tower and winder side

10

Line speed :100m/min

11

With Embossing roller

12

With Gusset device

13

Bubble fixer :Aluminium material  figuration frame

14

Other low-pressure electrical part : China brand

15

Power supply: 380V,3 phase, 50 HZ/Cycles.

16

UP and down device: inner type up and down, . 1pc





2. optional equipments should extra cost



1

CORONA TREATER

2

Rotary die head .

3

Mechanics-screen  changer

4

Auto loader





3.Description:

Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine

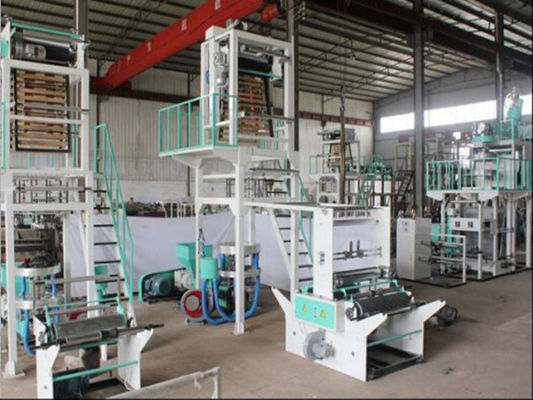

Electric box & Die head

Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine

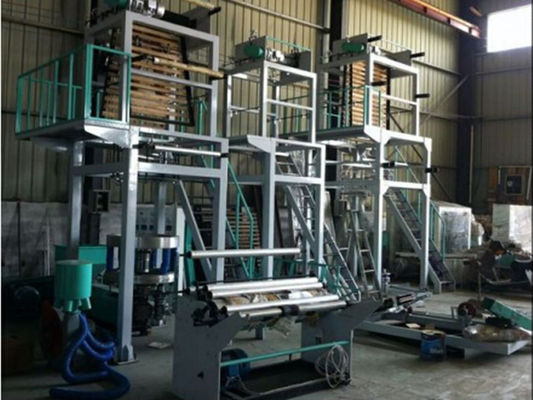

Shaped circle & film blowing

Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine

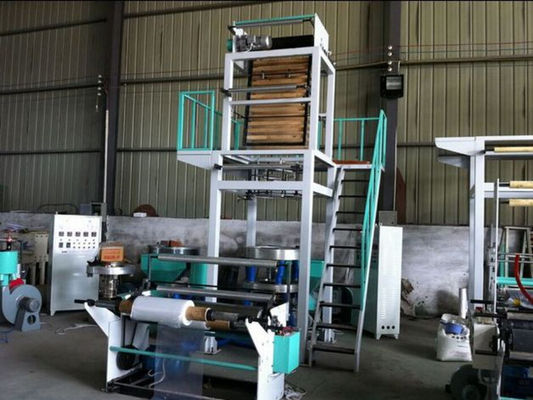

Traction of film & embossing parts

Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine

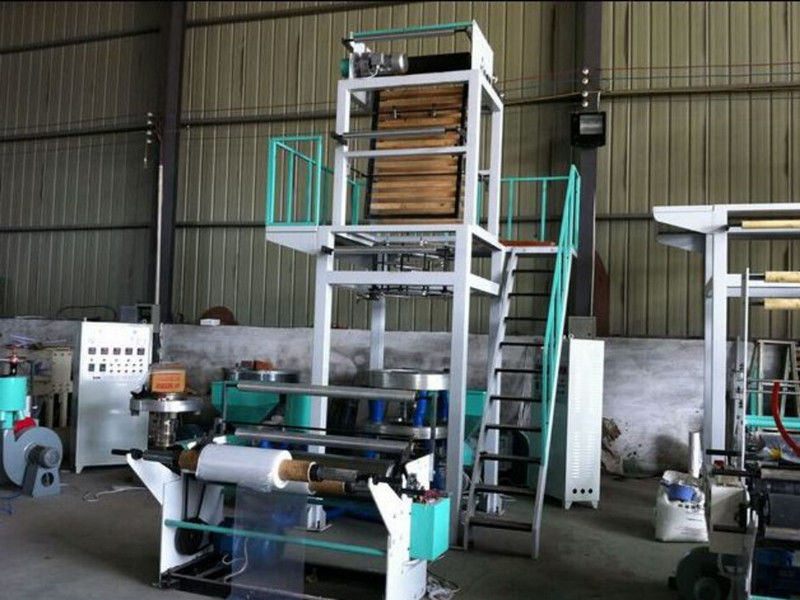

Finished film rolling-up

Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine
