Product Details:
Payment & Shipping Terms:
|
Product Application: | Flat And T Shirt Bag | Material: | PE PP Plastic |
---|---|---|---|
Machine Type: | Heat Sealing Cold Cutting Machine | Stage: | Double Layers Double Lines |
Product Application: | Flat And T Shirt Bag | ||
High Light: | polythene bag making machine,automatic bag making machine |
plastic bag making machine , shopping bag making machine , t shirt bag making machine , garbage bag making machine , flat bag making machine , plastic sealing cutting machine

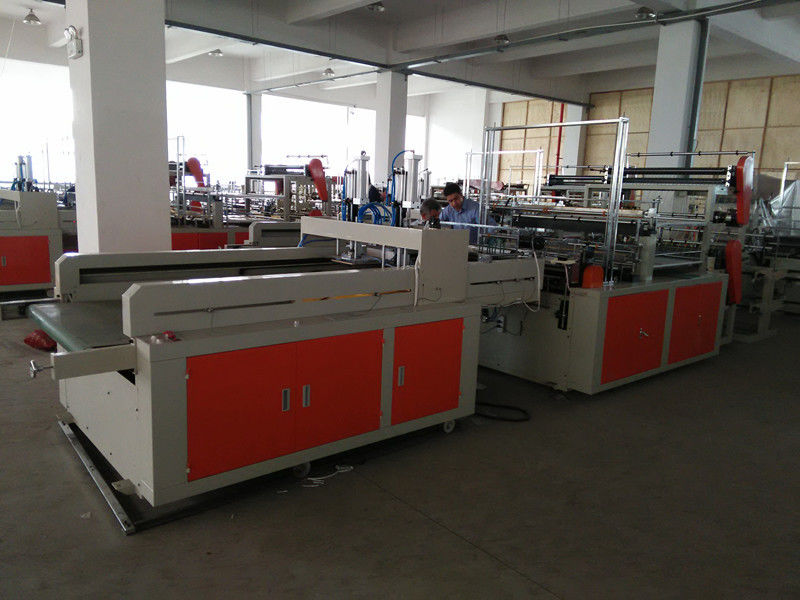

Heat Sealing Plastic Shopping Bag Making Machine Double Lines
Description:
SHXJ-B model is using driver control the step motor transmission, have computer photocel tracking, both can cutting and sealing printed and unprinted bag, high speed, high precision.
Features:
1.Application materials :HDPE and LDPE film
2.Main drive: A.C moter + Inverter
3.Feeding motors:
a) Equipped with one set of step motor and driver , which can raise the production speed and provide accurate bag length control.
b) Equipped with two DC motors and photoelectrical eyse, which are for back film unwinding / back film feeding.
4.For bottom sealed bag, which is made from tube type film
5.Microcomputer control,with functions as bag length setting , display of cutting speed, counting of ready bags, shift between printed bag and non-printed bags, batch setting ,etc.

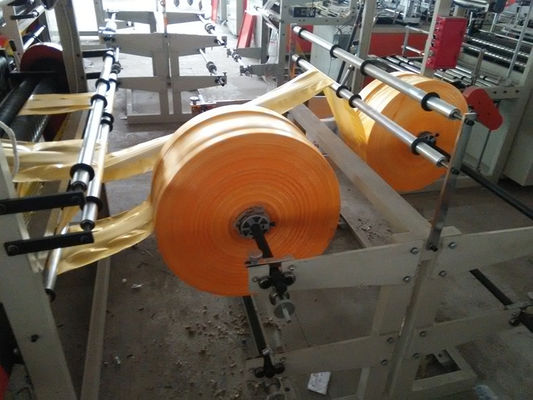

6.Unwinding section
a) Two unwinding stations to load two film rolls
b) Brake system for unwinding
c) Automatic tension system for unwinding

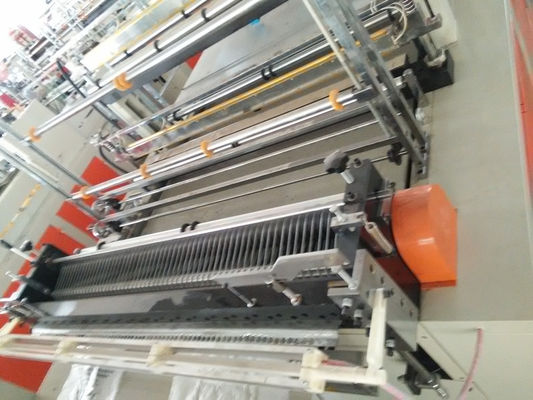

7.Bag making section
a) Machine has two deck
b) Equipped with two copper sealing bars. one is for up deck and the other is for down deck. the sealing bar is trunable to make two lines sealing or single line sealing.
c) Cold-cutting blades are spring-adjustable type
d) If making natural color bag without printed colors, it can 900mm wide * 2 or 450mm * 4 at the same time.
e) If making bag with printed colors, it can cut only one line at a time ,because machine equipped with one photocell and one feeding system.
f) Equipped with static-remover bar
g) Heating to sealing bar is controlled automatically

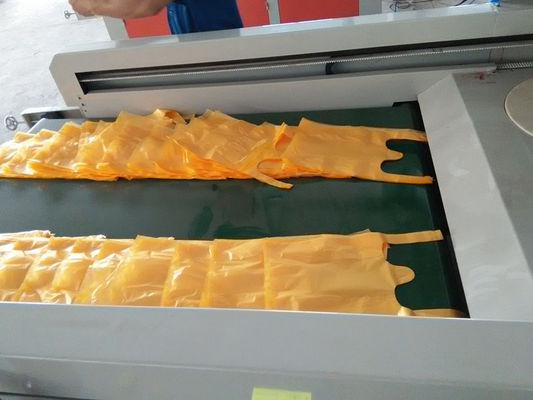

h) Equipped with one table to put the ready bags
1. Main Technical Variables:
Model |
SHXJ-B600 |
SHXJ-B700 |
SHXJ-B800 |
SHXJ-B 1000 |
width of sealing &cutting |
580x2/ 250x4mm |
680x2/ 300x4mm |
780x2/ 350x4mm |
980x2/ 450x4mm |
length of sealing & cutting |
700mm |
1200mm |
1200mm |
1600mm |
speed of bag-making |
240-400pc/min |
240-400pc/min |
60-100pc/min |
40-100pc/min |
Number of strip(pc) |
2/4 |
2/4 |
2/4 |
2/4 |
Power of motor(kw) |
1.1 |
1.5 |
1.5 |
3 |
Weight(kg) |
700 |
850 |
850 |
1100 |
Outine dimension (L x w x h)mm |
3.2×1.2×1.7m |
3.5 x 1.3 x 1.7m |
3.5 x 1.3 x 1.8m |
3.8 x 1.8 x 2.1m |
2.Optional equipments
Optional: Yaskawa servo |
YASKAWA INVERTER |
Double layers rewinding device |
