Product Details:
Payment & Shipping Terms:
|
| Raw Material: | HDPE,LDPE,LLDPE | Machine Type: | Extrusion Blowing Machine |
|---|---|---|---|
| Condition: | New | Usage: | Packing Or Shopping Bags Making |
| High Light: | blown film equipment,plastic Blowing Machinery |
||

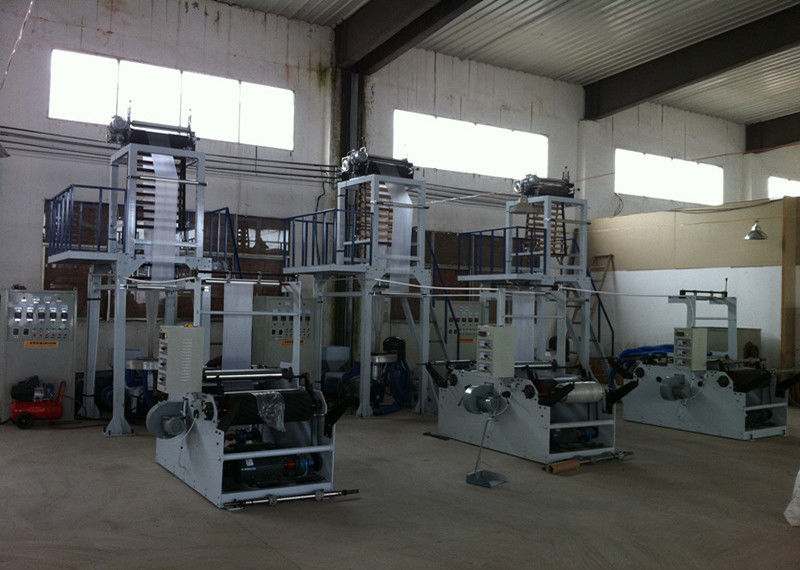

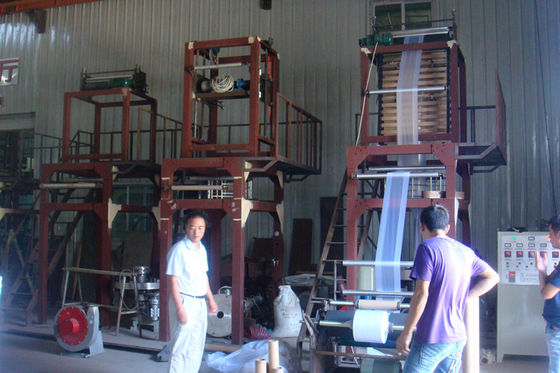

Low Density PE Film Extrusion Blowing Machine For Shopping Bags
Description:
|
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.
|
|
it is sound in hardness, durable in corrosion resistance.
|
|
The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.
|
|
It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE).
|
|
It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
|
OPTIONAL EQUIPMENT:
1)AUTO LOADER
2)CAST ALUM HEATER
3)AIR SHAFT
4)DIE ROTARY DEVICE
5)BOUBLE SIDES WINDER
6)UP AND DOWN
7)PNEUMATIC DEVICE
Main Technical Parameter:
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ50 | φ55 | φ65 | φ65 |
| Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
|
Max.Extrusion(Kg/h) |
35 |
50 |
65 |
80 |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main moto(kw) | 7.5-11 | 11-15 | 18.5-22 | 22 |
| Power of Tracion main moto(kw) | 1.1 | 1.1 | 1.5 | 1.5 |
| Heating Power(kw) | 11 | 13 | 19 | 21 |
|
Outline diameter(L x W x H) (mm) |
4800 x 1900 x 3500 | 5500 x 2100 x 3800 | 6500 x 2300 x 4200 | 6500 x 2500 x 4800 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
