Three to Five Layers Co-Extrusion Film Blowing Machine With IBC Inner

China Three to Five Layers Co-Extrusion Film Blowing Machine With IBC Inner supplier

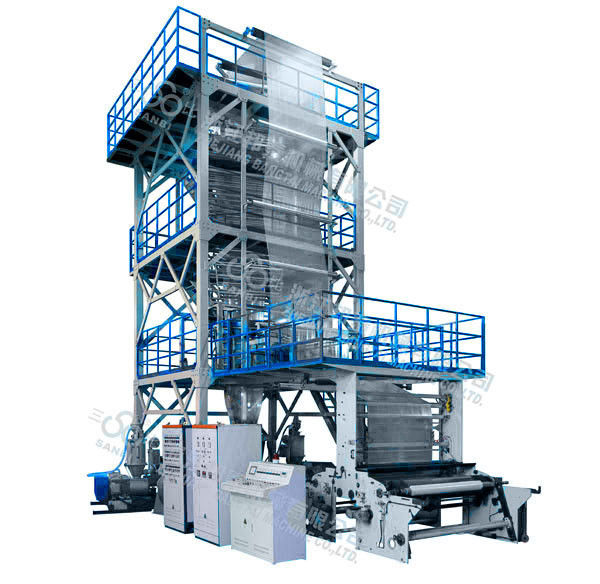

Large Image :  Three to Five Layers Co-Extrusion Film Blowing Machine With IBC Inner

Product Details:

Place of Origin: ZHEJIANG OF CHINA
Brand Name: SANBI
Certification: CE, ISO9001:2008, SGS
Model Number: MSJ-GS Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: standard wooden box for export
Delivery Time: 20-30 workingdays
Payment Terms: T/T. L/C. WESTER UNION etc.
Supply Ability: 20SETS PER MONTH
Detailed Product Description
High Light:

Plastic Film Blowing Machine

,

plastic blow molding machine



Three to Five Layers Co-Extrusion Film Blowing Machine With IBC Inner





characteristic :



1.IBC Film Tube Inner Cooling System

2.Auto Loader

3.Rotay Traction System

4.Up-down Film Bulle FIxer



Main Technical Parameter:



Type SJ55-GS1300 SJ60-GS1500 SJ65-GS1800 SJ-GS2300
Max. Lay Flat Width (mm) 1200 1400 1700 2100
Film Layer 3 3 3 3
Film Thickness (mm) 0.02-0.12 0.02-0.12 0.02-0.12 0.02-0.12
Max. Output(kg/h) 200 250 300 400
Raw Material LLDPE , LDPE , EVA
Screw Diameter(mm) φ 45/φ 55/φ 45 φ 50/φ 60/φ 50 φ 60/φ 70/φ 60 φ 75/φ 90/φ 75
Screw L/D Ratio 30.1 30.1 30.1 30.1
Screw Max. Rotation Speed (r/min) 100 100 100 100
Extruding Driving Power(kw) 18.5/30/18.5 22/37/22 30/45/30 55/90/55
Die Structure IBC Film Tube Inner Cooling System
Air-ring Structure Double Vents Air Ring
Reversing Haul-off System Horizontal± 180°
Take-off Wide-up Speed (m/min) 45-120
Total Power(kw) 150 280 280 350
Overall Dimensions(mm) According to actual machine



Product Description:

This film blowing machine set is to satisfy the customer's requirements of high quality, high out put film blowing equipment. It adopts the extruder with force feeding function, precision type ceramic heater, precision type double vents air ring, horizontal type rotary traction system, IBC inner cooling system, fully automatic surface friction type double cut double winders, computer concentrate control system, advanced technique and equipments. Compare with kindred equipment, it has the advantages such as more compact structure, higher output, better produce quality, less energy consume, easier operation. It can be widely used into various kind of high transparence packing film manufacture, and create the considerable economic benefit for you.
