Automatic Standing Up Bag Making Machine / Equipment Three Side Sealing 45Kw

China Automatic Standing Up Bag Making Machine / Equipment Three Side Sealing 45Kw supplier
Automatic Standing Up Bag Making Machine / Equipment Three Side Sealing 45Kw supplier Automatic Standing Up Bag Making Machine / Equipment Three Side Sealing 45Kw supplier Automatic Standing Up Bag Making Machine / Equipment Three Side Sealing 45Kw supplier Automatic Standing Up Bag Making Machine / Equipment Three Side Sealing 45Kw supplier Automatic Standing Up Bag Making Machine / Equipment Three Side Sealing 45Kw supplier

Large Image :  Automatic Standing Up Bag Making Machine / Equipment Three Side Sealing 45Kw

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE,ISO,SGS.TUV
Model Number: HDL-400,500,600

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Standard export package (wooden pallet/ box/nude packing)
Delivery Time: 20-30 workingdays
Payment Terms: T/T. L/C. WESTER UNION etc.
Supply Ability: 20SETS PER MONTH
Detailed Product Description
High Light:

polythene bag making machine

,

automatic bag making machine



High Speed Full Automatic Three Side Sealing Bag Making Machine For Standing Up bag





 Quick Detail:



Place of Origin:

China

Brand Name:

SANBI

Certification:

CE, ISO ,SGS





Description:



It adopts Two-servo with the third traction mechanism to make discharging material as well as the

material on the bracket with consistent speed drawn forward successively by the third traction motor

to ensure discharging material and its tension steady. The automatic feeding mechanism can reduce

the labor strength. The structure of whole machine is sound with exquisite equipment as well as

good looking appearance. It is ideal equipment at home with moderate speed, lower noise, good function.



Main Technical Parameters



Function:

3 side sealing, middle sealing .Standing Up bag

Main Electric Device:

It is mainly composed of traction two-servo motor,

working control computer produced in Taiwan,

its main drive as AC motor equipped with frequency

converter as well as temperature control 18 routes.

Suitable Material:

BOPP, COPP, PET, PVC, Nylon etc. plastic compound film,

multiple-layer extruding film, aluminum plating compound film,

 pure Al foil compound film.

Max. Speed:

160t/min.

Max. Discharging Speed:

≤36m/min. (depending on material and specifications)

Bag dimensions:

length: 400mm, if it is longer than 400mm, it must multiply to finish.

 ( max. times: 6)

Max. width: 500mm

Positioning Precision:

≤±0.5mm

Max. Dimensions of reeling:

¢600 ×1050mm (diameter × width )

Quantity of Heating Sealing Knives:

Vertical sealing adopts 4 units with heating up and down,

cooling up and down. Horizontal sealing adopts 3 units heating

up and down, 2 units with cooling up and down.

Qty of Temperature Electric Heating:

18 pcs.

Temperature Scopes:

0~300 ℃

Power of the Whole Machine:

45KW (the actual power when operating motor, is 30 KW,

 when keeping temperature, its power is 20KW.)

Overall Dimensions:

11000×2000×1870mm (L×W×H )

Net Weight of the Whole Machine:

5000 kgs.

Color:

green cover, black body. (It can be changed according to users.)

Model of Control System: SSF-IV Model compound high speed

bag-making control system.

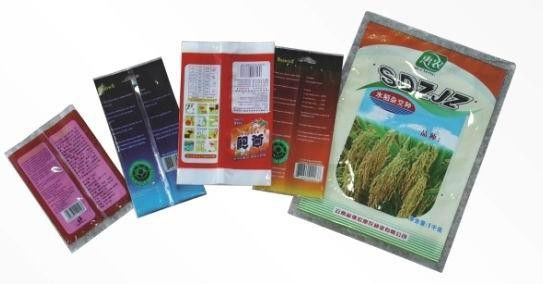

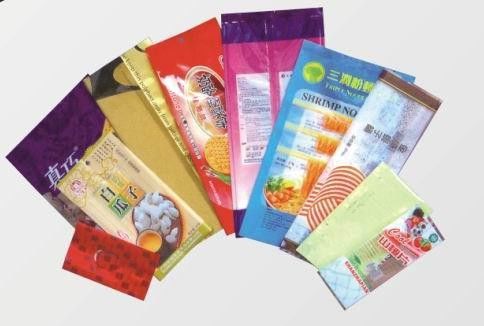

Applications:



- food packaging:cakes,candies,roasted seeds and nuts,

- biscuits, milk powder, salt,tea, bag  etc.;

- bacteria bags,convenient bags,storage bags;

- side sealing bag, stand up bag




Competitive Advantage:



a.The twenty-seven years experence to manufacture this machine

b. 30years professional engineers service in many countries,

c.Machines with quality guarantee for one year, life-long maintenance.

d.Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

e.Professional development group continuously improves and upgrades new products and new technologies .

f.Undertake various non-standard machinery, solve the customers' special requirements.



 High Speed Full Automatic Three side Sealing Plastic Bag Making Machine
