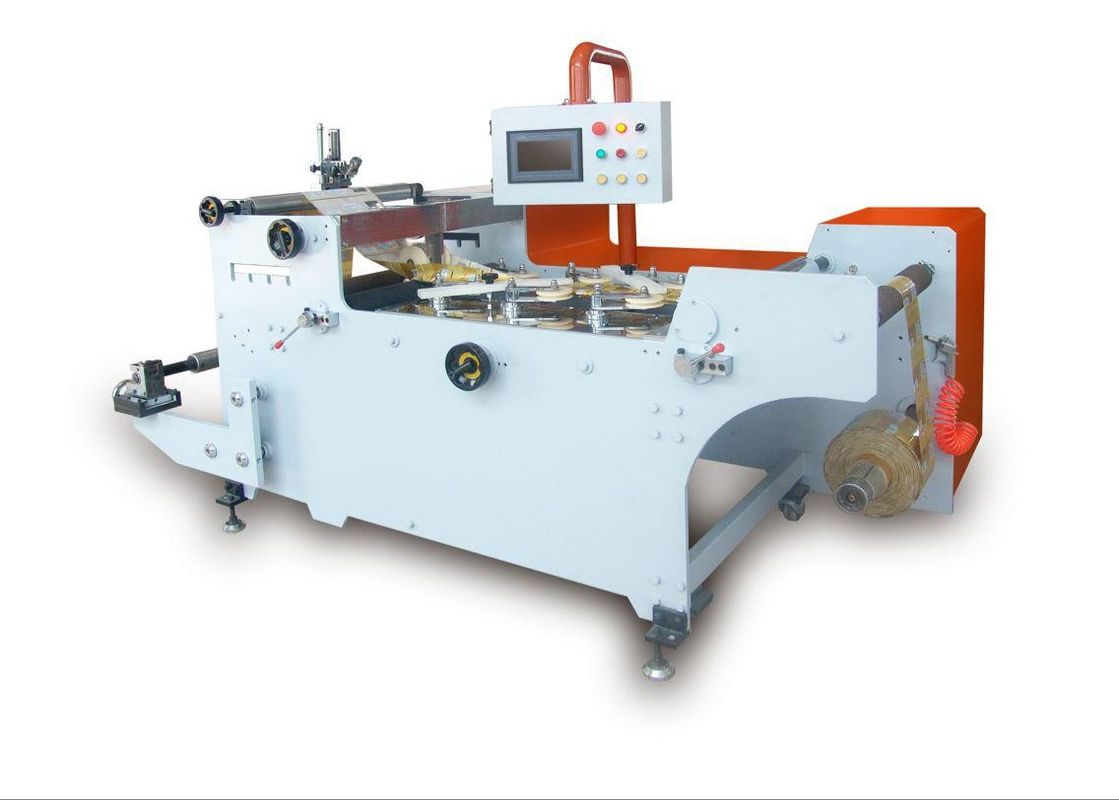

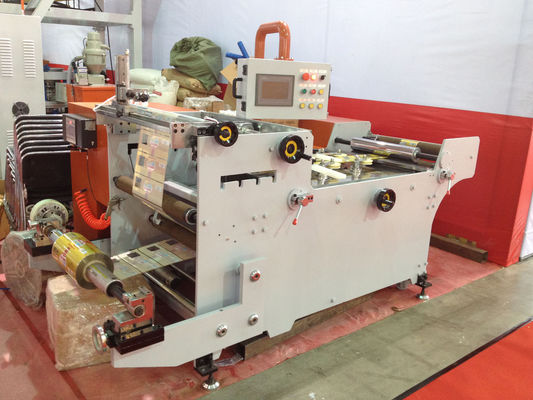

High Speed Automatic Middle Sealing Machine
Quick Detail:
a. Stable and heavy duty frame for high speed operation of 300n/min.
b. Adjustable forming plate creates efficient operation.
c. Auto solvent feeding control.
d. Auto tension control for unwind/rewind unit to maintain the optimun tension.
e. Accurate product width.
f. Cantilevered rewind/unwind shaft for fast roll changeover.

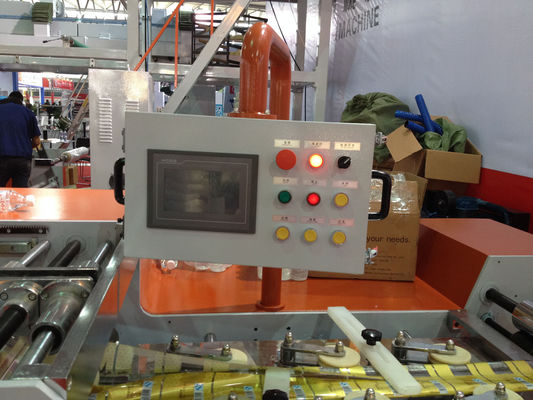

g. PLC with color touch screen control system.
h. Rewind oscillation control to produce high quality rolls.
Description:
The Machine is mainly used for middle saling and sticking of trade mark of PVC& PET, The equipment has high performance of control system and mechanical structure with reasonable design. The operation of the machine is stable. the work efficiency is high. it is an essential ideal equipment for middle sealing and sticking of marks
Applications:
- Water bottle label .
- PVC material
- PET material
Specifications :
|
Model |
300mm |
|
Width of Unwinding |
620mm |
|
Diameter of Unwinding |
600mm |
|
Diameter of Rewinding |
700mm |
|
Max speed of Working |
300m/min |
|
Max speed of Machine |
330m/min |
|
Voltage of Whole Machine |
380V/50HZ |
|
Dimension of Whole Machine |
3180x2000x1550mm |
Main configuration:
|
PLC |
INOVANCE CHINA |
|
Touch screen |
MCGS CHINA |
|
Main inverter |
INOVANCE CHINA |
|
Rewinding inverter |
INOVANCE CHINA |
|
PG Card |
INOVANCE CHINA |
|
EPC |
E+L GERMAN |
|
Glue pump |
CHUANRUI CHINA |
|
Unwinding Magnetic power |
WEIZHENG TAIWAN |
|
Rewinding vibrating servo motor |
INOVANCE CHINA |
|
Main converter motor |
DANMA TAIWAN |
|
Rewinding motor 1 piece |
DANMA TAIWAN |
|
Encoder |
OMRON JAPAN |
Competitive Advantage:
a. The twenty seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c. Machines with quality guarantee for one year, life-long maintenance.
d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
e. Professional development group continuously improves and upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers' special requirements.
BT-300 AUTOMATIC CENTER SEALING MACHINE
