3Kw Heat Sealing Plastic Bag Making Machine For Garbage Bag / Bacteria Bag

China 3Kw Heat Sealing Plastic Bag Making Machine For Garbage Bag / Bacteria Bag supplier

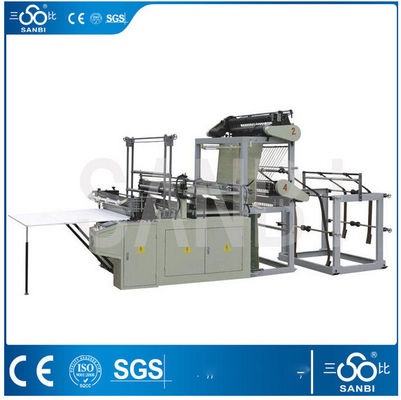

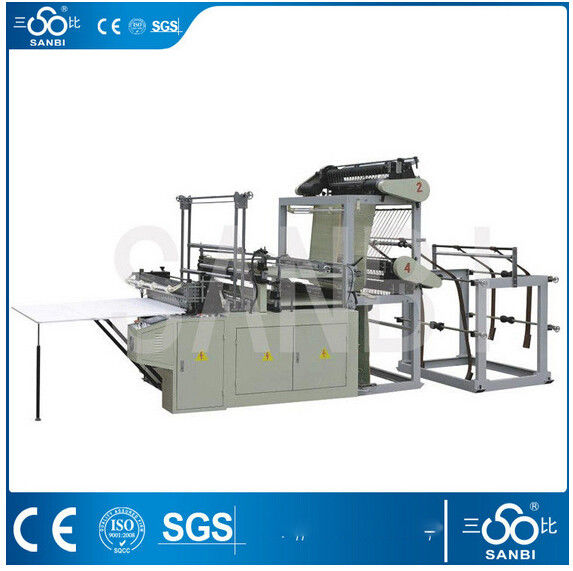

Large Image :  3Kw Heat Sealing Plastic Bag Making Machine For Garbage Bag / Bacteria Bag

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE,ISO,SGS.TUV
Model Number: SHXJ-B600-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Standard export package (wooden pallet/ box/nude packing)
Delivery Time: 20-30 workingdays
Payment Terms: T/T. L/C. WESTER UNION etc.
Supply Ability: 20SETS PER MONTH
Detailed Product Description
High Light:

polythene bag making machine

,

automatic bag making machine



Computer Control Heat sealing cold cutting Plastic bag making machine





 Quick Detail:


a.  Automatically computer control over the entire process

b. From film roll to final bag, one process flow.

c. (Step) Servo motor, easy to adjust the bag length and the production speed.

d.  Automatic film feeding, tension automatically controlled by torque motor.

e.  Automatically stop when film feeding blocks or bags jam.

f. High efficiency, save manpower and time.

g. Equipped with heat sealing and cold cutting device.

h. For flat bag, shopping bag. Garbage bag making

I. Single  layers with photocell for make printed bag





Description:



This  is High Speed Automatic heat sealing cold cutting Bag Making Machine applied to manufacturing and printing the uncolored   flat-opening and vest bags made of HDPE, LDPE roll film. It is automatically controlled by the computer completely. The user can optional it by the touch panel (PLC)

The main motor adopts variable frequency motor which is more power-efficient and more freely for speed-regulate. With good performance, the color code tracker can make the sealing and cutting length more accurately, and the error smaller. It also adopts advanced computer to adjust length, freely and accurately.





Applications:



- HDPE .LDPE T-shirt bag ,Shopping bag ,garbage bag .

- food packaging:cakes,candies,roasted seeds and nuts,

- biscuits, milk powder, salt,tea, etc.;

- bacteria bags,convenient bags,storage bags;

- woven inner bag




Specifications :



Model

SHXJ-B600

SHXJ-B700

SHXJ-B800

SHXJ-B 1000

width of sealing &cutting

(mm)

580x2/

250x4

680x2/

300x4

780x2/

350x4

980x2/

450x4

length of sealing & cutting

(mm)

700

1200

1200

1600

speed of bag making

(pc/min)

240-400

240-400

60-100

40-100

Number of strip

(pc)

2/4

2/4

2/4

2/4

Power of motor

(kw)

1.1

1.5

1.5

3

Weight(kg)

700

850

850

1100

Outine dimension

(L x w x h)mm

3200×1200×1700

3500 x 1300 x 1700

3500 x 1300 x 1800

3800 x 1800 x 2100





Competitive Advantage:



a. The twenty seven years experence to manufacture this machine

b. 30 years professional engineers service in many countries,

c. Machines with quality guarantee for one year, life-long maintenance.

d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

e. Professional development group continuously improves and upgrades new products and new technologies .

f. Undertake various non-standard machinery, solve the customers' special requirements.



3Kw Heat Sealing Plastic Bag Making Machine For Garbage Bag / Bacteria Bag

 3Kw Heat Sealing Plastic Bag Making Machine For Garbage Bag / Bacteria Bag



 3Kw Heat Sealing Plastic Bag Making Machine For Garbage Bag / Bacteria Bag
