Product Details:
Payment & Shipping Terms:
|
| Material: | LDPE ,HDPE ,LLDPE | Origin: | China |
|---|---|---|---|
| Certificate: | CE,ISO9001:2000,SGS | Model: | SJ-A50/55/65 |
| Color: | White With Blue | Appliation: | T Shirt Bag Film And Flat Bag Film |
| High Light: | Plastic Film Blowing Machine,plastic blow molding machine |
||

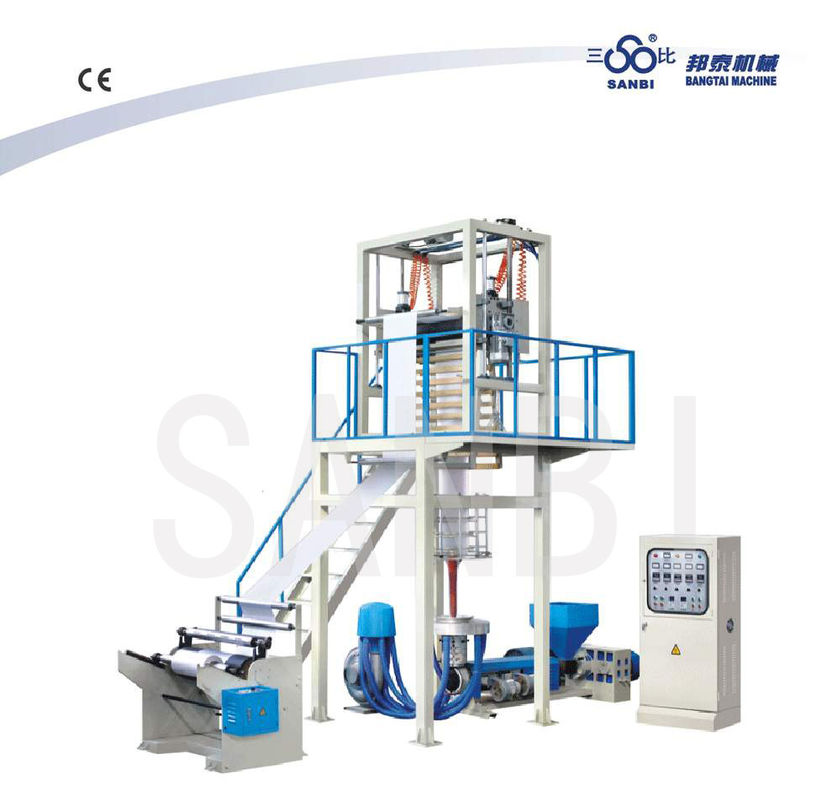

PE Plastic Film Film Blowing Machine , Polyethylene Blown Film Extruder
Spec:
|
Model |
SJ-A50 |
SJ-A55 |
SJ-A65 |
SJ-A65-1 |
|
Diameter of screw |
φ50 |
φ55 |
φ65 |
φ65 |
|
Lay-flat width of film(mm) |
100-600 |
200-800 |
300-1000 |
400-1200 |
|
Thickness of film(mm) |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
|
Max. output(kg/h) |
35 |
50 |
65 |
80 |
|
L/D ratio of screw |
28:1 |
28:1 |
28:1 |
28:1 |
|
Power of main motor(kw) |
11 |
15 |
22 |
22 |
|
Power of Traction motor(kw) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Heating Power(kw) |
10 |
15 |
20 |
20 |
|
Overall dimension(L*W*H) (m) |
4.8*1.9*3.8 |
5.5*2.1*4.6 |
6.5*2.3*5.2 |
6.500*2.5*5.2 |
|
Weight(T) |
1.5 |
2 |
2.3 |
2.6 |
Standard Configure
| 9 | Barrel and screw material: 38 chrome-molybdenum aluminum , nitrogen treated |
| 10 | FIXED DIE HEAD DEVICE |
| 11 | Gear box: water cooling reducer, hard tooth surface |
| 13 | Single winder |
| 14 | counter of metric |
| 15 | Main motor : CHINESE BRAND ,WITH CHINESE INVERTER |
| 16 | Heating ring : cast aluminum |
| 18 | Air compressor |
| 19 | winder motor : torque motor |
| 20 | Embossing roller |
| 21 | Gusset device |
| 22 | 3PASE 380V 50HZ |
Use:
This screw and barrel is made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Competitive Advantage:
a. The twenty-seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c. Machines with quality guarantee for one year, life-long maintenance.
d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
e. Professional development group continuously improves and upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers' special requirements.

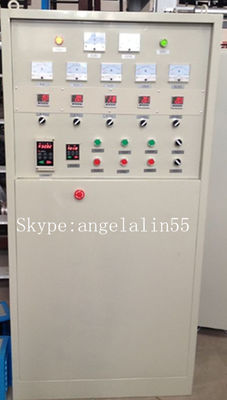

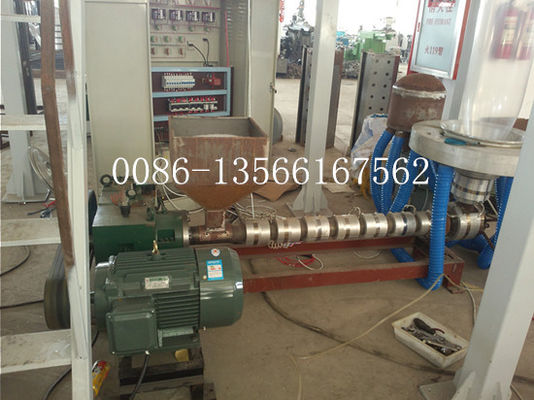

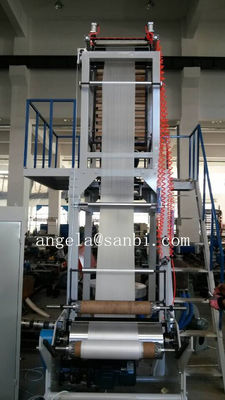

Picture:
