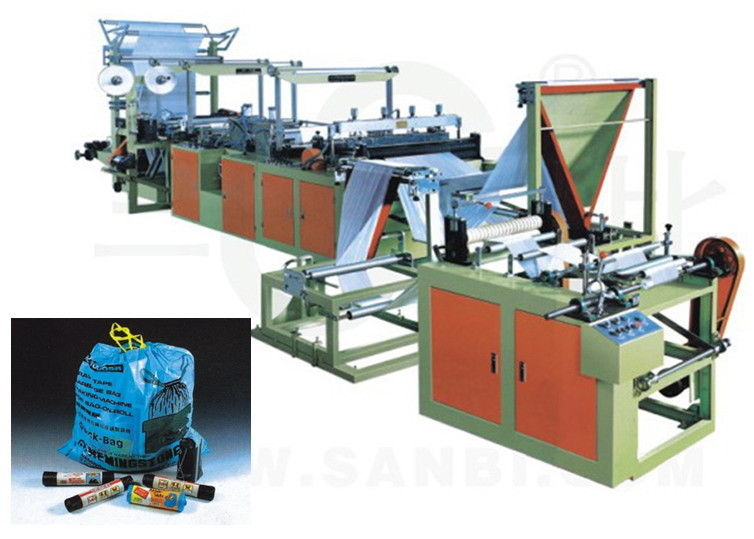

Automatic Ribbon Through garbage bag making machine With CE ISO SGS TUV

China Automatic Ribbon Through garbage bag making machine With CE ISO SGS TUV supplier

Large Image :  Automatic Ribbon Through garbage bag making machine With CE ISO SGS TUV

Product Details:

Place of Origin: China
Brand Name: SANBI
Certification: CE.ISO.SGS , TUV
Model Number: RLD 800-1300

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Standard export package (wooden pallet/ box/nude packing)
Delivery Time: 20-30 workingdays
Payment Terms: T/T. L/C. WESTER UNION etc.
Supply Ability: 20days per month
Detailed Product Description

Quick Detail:

a.  Automatically computer control over the entire process

b. From film roll to side sealing -make hole- play draw - twince folding final in roller with coreless

 rewinding c.   (Step) Servo motor, easy to adjust the bag length and the production speed.

d.  Automatic film feeding, tension automatically controlled by torque motor.

e.  Automatically stop when film feeding blocks or bags jam.

f.  High efficiency, save manpower and time.

g. Equipped with heat sealing and cold cutting device.

h. For flat bag, Garbage bag making in roller with ribbon-through



Description

The machine is designed and produced by our company based on the latest technology in the world

( first original producer in local market)

The machine adopts computer control system, servo motor structure.
With functions such as photocell automatic tracking, blank/ color bag-making shift, microcomputer length

setting, automatic counting, automatic alarm when reaching the



set figure, automatic temperature control.
Equipped with mechanical device for functions such as auto cutting, punch hole, half-round hole, strip-go-through, strip moving, side sealing, bottom sealing, point-cutting, folding, continuous rolled and roll separate ,without core rewinding . etc.

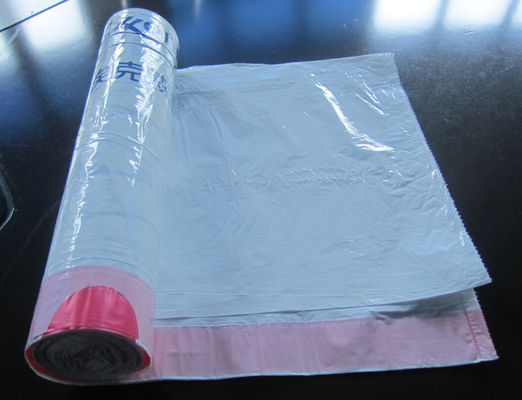

This machine can produce continuous-rolled strip-through type garbage bag, continuous-roll flat bag and normal flat bag.



Applications:

- HDPE .LDPE ,Shopping bag ,garbage bag .



Specifications :



Type

RLD-1000

RLD-1300

Max. Width of bag-making(mm)

1300mm

1300mm

Max. Length of bag-making(mm)

1200mm

1200mm

Thickness of Film

0.01-0.05mm

0.01-0.05mm

Capacity

15-35pcs/min

15-35pcs/min

Main motor

2.2kw

2.2kw

Heater power

5KW

5KW

Total power

8KW

9KW

Weight(kg)

 2600 KG

 3000 KG

Overall dimension

8200×1700×2100mm

9200×2000×2200mm

Competitive Advantage:


a.The twenty-seven years experence to manufacture this machine

b. 30years professional engineers service in many countries,

c.Machines with quality guarantee for one year, life-long maintenance.

d.Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

e.Professional development group continuously improves and upgrades new products and new technologies .

f.Undertake various non-standard machinery, solve the customers' special requirements.

Automatic Ribbon Through garbage bag making machine With CE ISO SGS TUV

Automatic Ribbon Through garbage bag making machine With CE ISO SGS TUVAutomatic Ribbon Through garbage bag making machine With CE ISO SGS TUV




Side sealing hot cutting bag making machine ( Plastic Bag Making Machine ) for PP bag


Side sealing hot cutting bag making machine ( Plastic Bag Making Machine ) for PP bag
