| High Light: | plastic blow molding machine,blown film equipment |
||
|---|---|---|---|
Quick Detail:

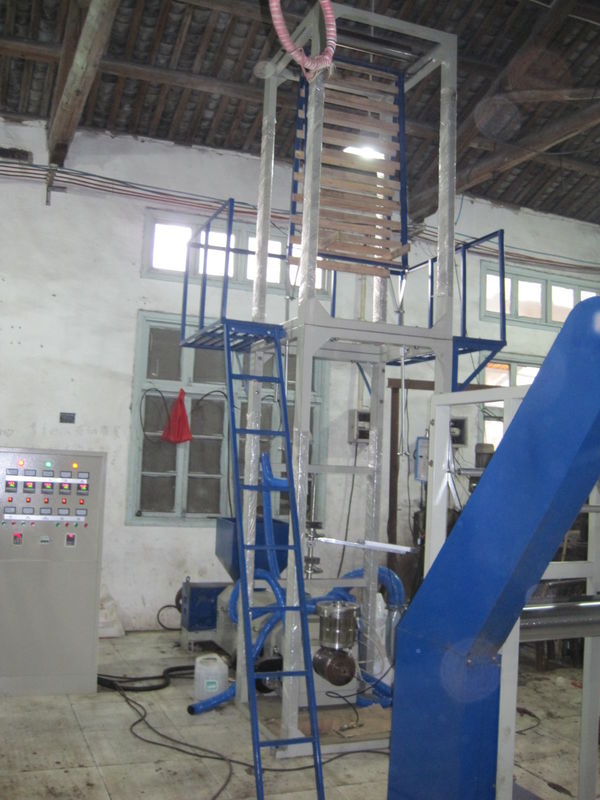

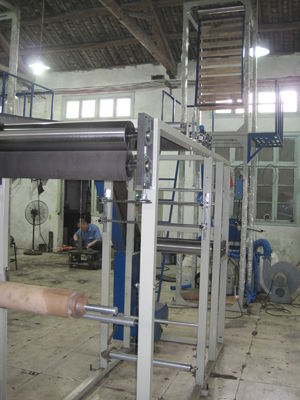

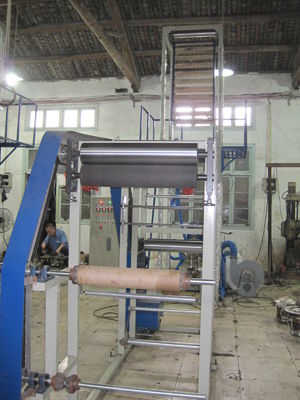

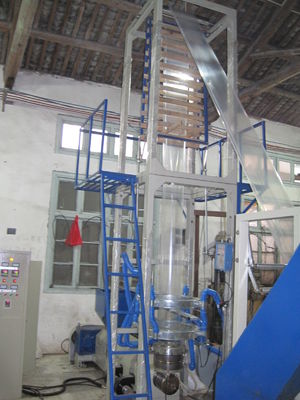

Zipper Film Extruding Machine
used for making LDPE self-sealing bag film
with different zipper bag moulds
cutting machine
|
Condition |
New |
|
Application |
Film |
|
Plastic Processed |
PE |
|
Screw Design |
three-screw |
|
Place of Origin |
China (Mainland) |
|
Brand Name |
SANBI |
|
Model Number |
ZIP-55, 65 |
|
self-sealing bag film extruding machine |
zipper bag moule for different sizes of bags |
|
max. film width 580mm |
easy to operate |
Description:

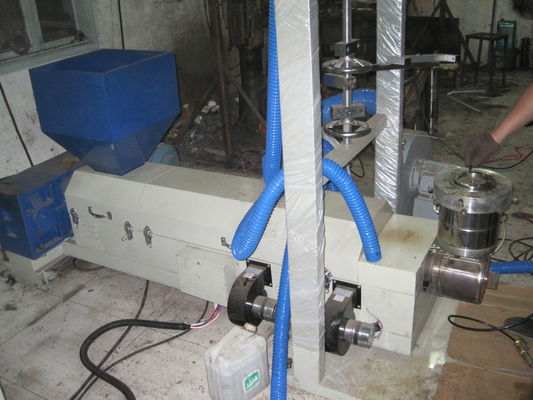

Its extruder, cylinder and screw are made of quality alloy steel which have been nitrized and processed in a precision way. Hence
it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps
increase the production capacity. It is applied to blowing the plastic films like LDPE, HDPE and LLDPE, widely applied to producing the
packing bags for foodstuff, clothing, rubbish bag and vest bags.
Applications:
The lines are designed developed by our corporation according to market need, they reach the advanced levels
in the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous
lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging
films, film has good insulation, for instance holding temperature, anti-humid, anti-freeze, anti-rain, anti-rost, insulation oxygen,
oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meats, salt vegetables, fresh milk, drink and so on.
Specifications:
|
Model |
ZIP-55 |
ZIP-65 |
|
Raw Material |
LDPE |
LDPE |
|
Output (kg) |
5-25 |
10-30 |
|
Lay-flat Width of Film(mm) |
50-480 |
100-580 |
|
Thickness of film(mm) |
0.04-0.15 |
0.04-0.15 |
|
Film annulus diameter (mm) |
Φ550mm |
Φ550 |
|
Diameter of screw (mm) |
Φ55 |
Φ65 |
|
L/D Ratio of Screw |
28:1 |
28:1 |
|
Heating power(kw) |
12 |
15 |
|
Total Power(kw) |
25 |
30 |
|
Overall Dimension(L*W*H)mm |
6000*1200*4100 |
6000*1200*4100 |
