Full Automatic four lines nylon bag making machine for shopping Bag

China Full Automatic four lines nylon bag making machine for shopping Bag supplier

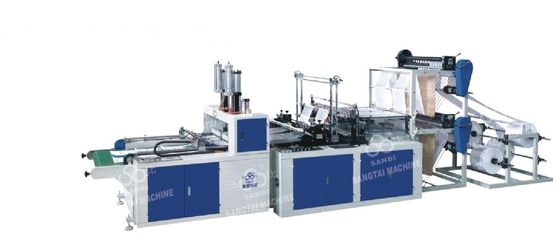

Large Image :  Full Automatic four lines nylon bag making machine for shopping Bag

Product Details:

Place of Origin: China
Brand Name: SANBI
Certification: CE,ISO,SGS.TUV
Model Number: SHXJ-D600-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Standard export package (wooden pallet/ box/nude packing)
Delivery Time: 20-30 workingdays
Payment Terms: T/T. L/C. WESTER UNION etc.
Supply Ability: 20SETS PER MONTH
Detailed Product Description

Full Automatic four lines nylon bag making machine for shopping Bag





 Quick Detail:



Place of Origin:

China

Brand Name:

SANBI

Certification:

CE, ISO ,SGS

a.   Automatically computer control over the entire process

b.  From film roll to final bag, one process flow.

c.   (Step) Servo motor, easy to adjust the bag length and the production speed.

d.    Automatic film feeding, tension automatically controlled by torque motor.

e.    Automatically stop when film feeding blocks or bags jam.

f.    High efficiency, save manpower and time.

g.  Equipped with heat sealing and cold cutting device.

h. For flat bag, shopping bag. Garbage bag making

I. Two layers ,four lines Automatic punching cylinder device make t-shirt bag improve the capacity of produces .



3. Description:

This  is High Speed Automatic heat sealing cold cutting Bag Making Machine applied to manufacturing and printing the uncolored   flat-opening and vest bags made of HDPE, LDPE roll film. It is automatically controlled by the computer completely. The user can optional it by the touch panel (PLC) and with automatic punching device for completely t-shirt bag making

The main motor adopts variable frequency motor which is more power-efficient and more freely for speed-regulate. With good performance, the color code tracker can make the sealing and cutting length more accurately, and the error smaller. It also adopts advanced computer to adjust length, freely and accurately.

4. Applications:

HDPE .LDPE T-shirt bag ,Shopping bag ,garbage bag .

food packaging:cakes,candies,roasted seeds and nuts,

biscuits, milk powder, salt,tea, etc.;

bacteria bags,convenient bags,storage bags;
woven inner bag

5. Specifications :

Model

SHXJ-D800

SHXJ-D900

SHXJ-D1000

Width of sealing &cutting(mm) character

150-300x 4line

150-350x 4line

150-400x 4line

Bag width(printed color)

150-700mm x 2

150-800mm x 2

150-900mm x 2

Length of sealing & cutting(mm) character

200-600x 4

200-600x 4

200-800x 4

Speed of bag-making(pc/min)

30-100pcs/minx4

30-100pcs/minx4

30-100pcs/minx4

Thickness of film

0.01-0.1mm

0.01-0.1mm

0.01-0.1mm

Number of strip(pc)

2 or 4

2 or 4

2 or 4

Power of motor(kw)

1.5kw(4grade)

1.5kw (4grade)

1.5kw(4grade)

G.Weight(kg)

1700

1800

1900

Outline dimension(L×W×H)mm

5000×1500×2000

5000×1600×2000

5000×1800×20000

Step motor

2pcs

2pcs

2pcs

Photocell

2pcs

2pcs

2pcs

6. Competitive Advantage:


a. The twenty-seven years experence to manufacture this machine

b. 30years professional engineers service in many countries,

c. Machines with quality guarantee for one year, life-long maintenance.

d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

e. Professional development group continuously improves and upgrades new products and new technologies .

f. Undertake various non-standard machinery, solve the customers' special requirements.


 Full Automatic four lines nylon bag making machine for shopping Bag






 Full Automatic four lines nylon bag making machine for shopping Bag


 Full Automatic four lines nylon bag making machine for shopping Bag



 Full Automatic four lines nylon bag making machine for shopping Bag
