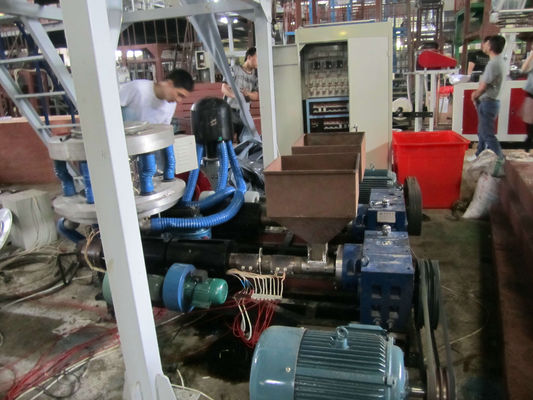

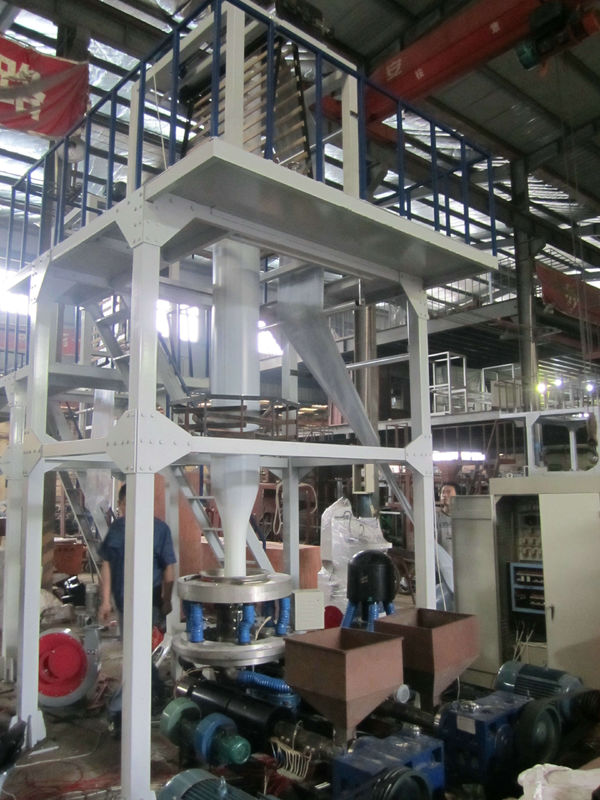

380V LDPE / HDPE Film Blowing Machine With Rotary Die Full Automatic

China 380V LDPE / HDPE Film Blowing Machine With Rotary Die Full Automatic supplier

Large Image :  380V LDPE / HDPE Film Blowing Machine With Rotary Die Full Automatic

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE, ISO9001
Model Number: SJ-B55

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: 13000
Packaging Details: wooden package
Delivery Time: within 30 workdays
Payment Terms: T/T, L/C
Supply Ability: 30sest/month
Detailed Product Description

Quick Detail:



1.Top quality film blowing machine
2.High quality products
3.Quality first, customer first
Plastic Film Blowing Machine



Condition

New

Application

Film

Plastic Processed

PE

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

Place of Origin

Zhejiang, China (Mainland)

Brand Name

SANBI

Model Number

SJ-B50/55/65/70

Voltage

380V / as request

Power(W)

22/26/40/45KW

Dimension(L*W*H)

7300*2900*5800mm

Weight

2.5/2.9/3.4/3.5T

Certification

ISO 9000 ,CE

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Certificate

CE,ISO 9000

Material

HDPE,LDPE ,LLDPE

Product Type

Pe Film

Processing Type

Extruding Machine

quality

top quality

service

high quality service

Plastic Film Blowing Machine

Plastic Film Blowing Machine

type

Film Blowing Machine

supplier

trustworthy

The product

Popular worldwide







Description:



It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts variable frequency motor to improve the speed regulating stability and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, it can achieve the best effect of cooling.





Applications:



Its extruder, cylinder and screw are made of quality alloy steelwhich have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like LDPE, HDPE and LLDPE, widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags.





Specifications:



Model

SJ-B50

SJ-B55

SJ-B65

SJ-B65-1

Diameter of Screw(mm)

Φ50

Φ55

Φ60

Φ65

L/D ratio of screw

28:1

28:1

28:1

28:1

Speed of screw(r/min)

10-100

10-100

10-100

10-100

Power of Main Motor(kw)

11

15

22

22

Max. Output(kg/h)

35

50

65

80

Max. Lay-flat Width of Film(mm)

600

800

1000

1200

Thickness of Film (mm)

0.01-0.10

0.01-0.10

0.01-0.10

0.01-0.10

Total Power(kw)

22

26

30

36

Weight of Machine(T)

2

2.3

2.6

3

Overall Dimensions

(L*W*H)(m)

4*1.8*4.6

4.2*2*4.9

4.6*2.3*5.6

4.8*2.5*5.8





Optional equipment



Name

auto loader

cast Aluminum Heating ring

pneumatic device

air shaft

Aluminum Shape ring





Spare parts



01

filter

3M

12

electric –testing pen

1 pc

02

magnetic stone

1 pc

13

screw  blade

1 pc

03

air pipe

1 pc

14

hexageonic wrench

1 pc

04

electric-thermal couple

2 pcs

15

glove

4 pairs

05

screw heater(stainless steel)

1 pc

16

digital temperature meter

1 pc

06

three-through heater

1 pc

17

current meter

1 pc

07

Breaker DZ47 1P 32A

1 pc

18

A.C contactor CJX1-22A/220V

1 pc

08

Butter Y090

1 pc

19

point X5-2010

2 pcs

09

8-10 open and wrench

1 pc

20

main switch

1 pc

10

14-17 open and wrench

1 pc

21

8# monkey wrench

1 pc

11

17-19 open and wrench

1 pc

22

8# needle nose pliers

1 pc





Competitive Advantage:



380V LDPE / HDPE Film Blowing Machine With Rotary Die Full Automatic

380V LDPE / HDPE Film Blowing Machine With Rotary Die Full Automatic380V LDPE / HDPE Film Blowing Machine With Rotary Die Full Automatic380V LDPE / HDPE Film Blowing Machine With Rotary Die Full Automatic
