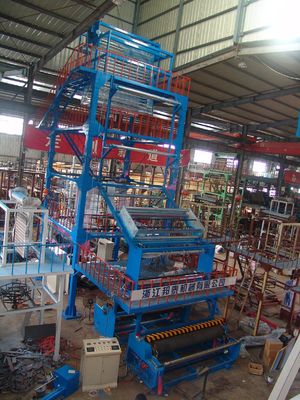

Double-layer Co-extrusion Plastic Film Blowing Machine With CE ISO

China Double-layer Co-extrusion Plastic Film Blowing Machine With CE ISO supplier

Large Image :  Double-layer Co-extrusion Plastic Film Blowing Machine With CE ISO

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 2SJ-G2800
Price: negotiate
Packaging Details: Wooden package
Delivery Time: within 40 workdays
Payment Terms: T/T, L/C
Supply Ability: 30 SEST ONE MONTH
Detailed Product Description

Quick Detail:

1) 2 Extruder, double winders
2) Rotary head
3) High quality with CE, ISO and SGS



Condition

New

Application

Film

Plastic Processed

PE

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

Place of Origin

Zhejiang, China (Mainland)

Brand Name

SANBI

Model Number

2SJ-G

Material

HDPE,LDPE,LLDPE

Exstrusion

2 layers Co-extrusion

Die head

Rotary

Screws

2

Winders

Double winders

Use

Bag,package

Certificate

CE, ISO, SGS



Description:



a. Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.

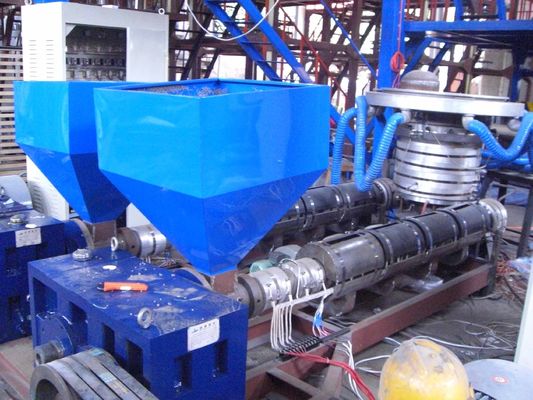

b. Cylinder and screw of the extruder are made of high quality alloy steel which is after precision finishing and nitrogen treatment, optimum hardness and durable service.

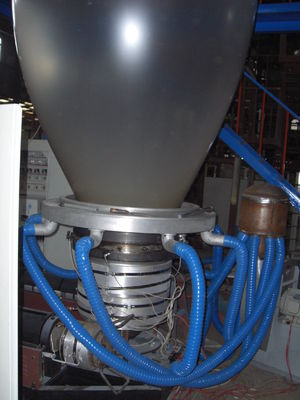

c.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.

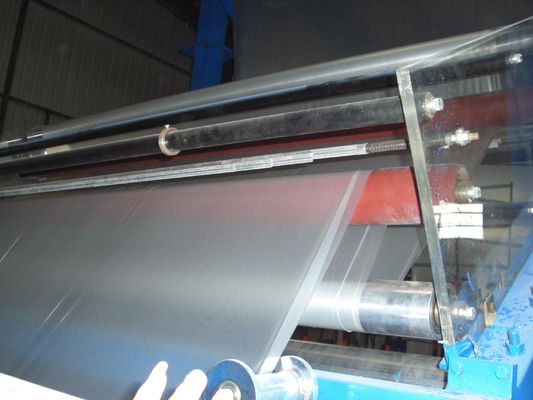

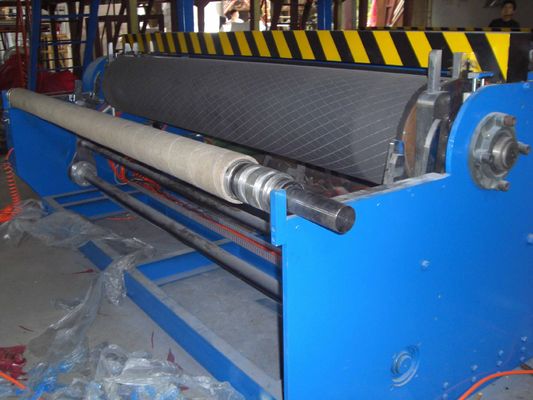

d. Double-rolling and double-cutting coiling device adopts torque motor to keep proper tensions and make rolling and roll-changing easy.



Applications:



It is used for blowing the plastic laminated film of LDPE, HDPE and LLDPE,etc.which are widely used for liquid packing, printed base material, package for export and industrial products,etc.





Specifications:



Model

2SJ-G50

2SJ-G55

2SJ-G60

Diameter of screw

ф50*2

ф55*2

ф60*2

L/D of screw

28:1

28:1

28:1

Reduced diameter of film(mm)

800

1000

1200

Single-face Thickness of film(mm)

0.015-0.10

0.015-0.10

0.015-0.10

Max. Output(kg/h)

40

65

80

Power of main motor(kw)

11*2

15*2

18.5*2

Heating Power(kw)

26

30

42

Overall Dimension(L*W*H)(mm)

4200*2200*4000

4600*2400*4600

5000*2800*5000

Weight(T)

4

5

6



Competitive Advantage:



Double-layer Co-extrusion Plastic Film Blowing Machine With CE ISO

Double-layer Co-extrusion Plastic Film Blowing Machine With CE ISO

Double-layer Co-extrusion Plastic Film Blowing Machine With CE ISO

Double-layer Co-extrusion Plastic Film Blowing Machine With CE ISO
