High Speed Plastic Bag Making Machine With Two Servo Motor

China High Speed Plastic Bag Making Machine With Two Servo Motor supplier
High Speed Plastic Bag Making Machine With Two Servo Motor supplier High Speed Plastic Bag Making Machine With Two Servo Motor supplier High Speed Plastic Bag Making Machine With Two Servo Motor supplier High Speed Plastic Bag Making Machine With Two Servo Motor supplier

Large Image :  High Speed Plastic Bag Making Machine With Two Servo Motor

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE,ISO,SGS.TUV
Model Number: DFHQ-450X2

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Standard export package (wooden pallet/ box/nude packing)
Delivery Time: 20-30 workingdays
Payment Terms: T/T. L/C. WESTER UNION etc.
Supply Ability: 20SETS PER MONTH
Detailed Product Description
High Light:

woven bag making machine

,

nylon bag making machine



High Speed Plastic Bag Making Machine With Two Servo Motor



Quick Detail:


Place of Origin:

China

Brand Name:

SANBI

Certification:

CE, ISO ,SGS



1. LDPE.HDPE hot sealing hot cutting t-shirt bag making.

2. Full automatic controlled by the computer (or touch screen) completely

3. Two sealing knifves. Two photocell. Two auto punching cylinders.two step motor (servo motor )and driver feeding

4. Two inveter motor driven system in unwind unit and it can automatically change the feeding speed based on the machine's speed requirement.

5. Providing the highest production speed and output.

6. Equipped the multi auto alarms with automatic stop design.

7 The whole pile of bags has the "Rocking System", which would not make the 2 pcs of bags sealing stick together.




Description:

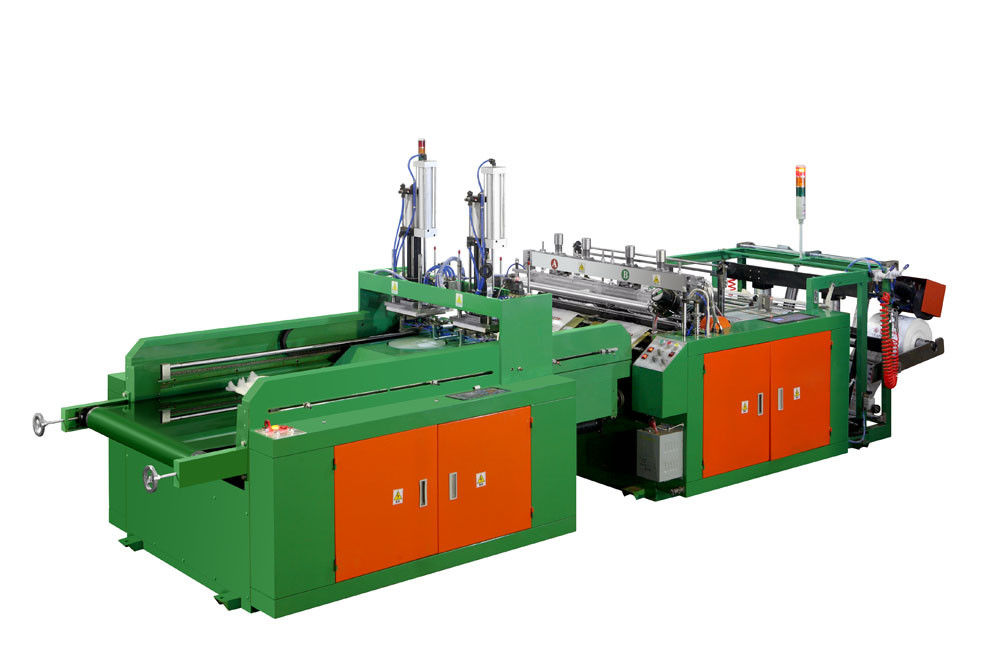

This machine is High Speed full Automatic T-shirt Bag Making Machine applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It is automatically controlled by the computer completely. The user can optional it by the touch panel (PLC)
It is Operated by the computer monitor, it will stop the machine immediately whenever any abnormality occurs. The abnormal codes and solutions will be displayed on the touch panel. It helps to reduce the confusion of repair.
The plastic roll of this unwinder is driven by inverter motor, and it can automatically change the feeding speed based on the machine's speed requirement. This is suitable for the high speed production machine,
double servo(step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.



Applications:


- HDPE .LDPE T-shirt bag
- Shopping bag with handle
- garbage bag with handle




Specifications :


Model

DFHQ-450X2

Max. rubble roll width

450mmX2

Max. effective width of  bag

350-400mmx 2

Max.Bag-making length

650mm

Bag-making thickness

0.015-0.035mm

Bag-making speed

140-180pcs/minX2

Air pressure

5kg/cm2

Automatic punching cylinder

2pcs

Photocell

2pcs

Unwinder motor controller

2pcs with inverter motor

Total Power

9kw

Weight of machine

1600kg

Overall dimensions

6000X1600X1600mm(L X W X H)



Competitive Advantage:



1.The twenty-seven years experence to manufacture this machine

2. More 30years professional engineers service in many countries

3. Machines with quality guarantee for one year, life-long maintenance.

4. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

5.Professional development group continuously improves and upgrades new products and new technologies .

6.Undertake various non-standard machinery, solve the customers' special requirements.

7. High speed,hige stable full automatic completely process lines
