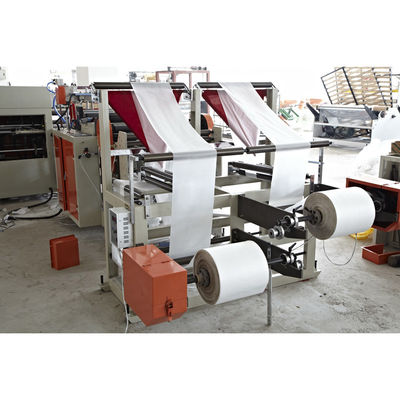

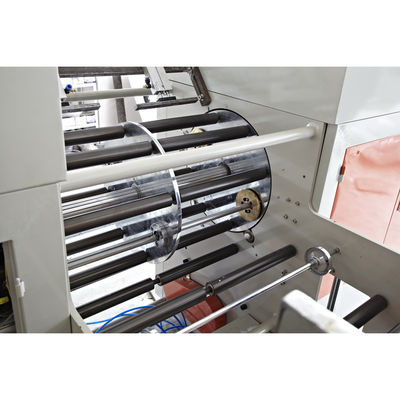

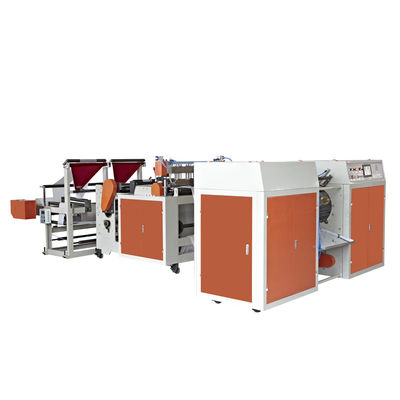

Full Automatic coreless rolling bag making machine for garbage bag

China Full Automatic coreless rolling bag making machine for garbage bag supplier

Large Image :  Full Automatic coreless rolling bag making machine for garbage bag

Product Details:

Place of Origin: CHINA
Brand Name: SANBI
Certification: CE.ISO.SGS , TUV
Model Number: BT-300*2

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 20000USD-23000USD
Packaging Details: Standard export package (wooden pallet/ box/nude packing)
Delivery Time: 20-30 workingdays
Payment Terms: T/T. L/C. WESTER UNION etc.
Supply Ability: 20days per month
Detailed Product Description

Quick Detail:

Place of Origin:

China

Brand Name:

SANBI

Certification:

CE, ISO ,SGS

a.  Automatically computer control over the entire process
B. rewinder part adopts PLC program control system
b.  From film roll to folding -sealing and cutting final make in roller and automatic change roller  , one process
c.  (Step) Servo motor, easy to adjust the bag length and the production speed.
d.  Automatic film feeding, tension automatically controlled by torque motor.
e.  Automatically stop when film feeding blocks or bags jam.
f.   High efficiency, save manpower and time.
g.  Equipped with heat sealing and cold cutting device.
h.  For flat bag, Garbage bag making in roller and automatic change roller
I.  Two lines improve the capacity of produces .

Description:
The machine is adopts corless rewinder.automatic roller changer;synchronous foling&feeding;double roller synchronous feeding not strain.Controlled by Panasonic motor inverter,high-speed&precise,it can produce two lines film at one time.High efficiency and save.
The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.

Applications:
HDPE .LDPE ,Shopping bag ,garbage bag .

Specifications :

Model

BT-300*2

Material type

LLDPE.HDPE

Production speed

60m/*2

After fold bag width

200-300mm

Loading film width

200-600mm

Bag length

200-1000mm

Film thickness

0.008-0.02mm

Total power

 6kw

Overall dimension

5000*2200*1600mm

Servo motor

1.0kw

Main part

1.1kw(bag making machine)

Rewinder changer

0.75kw*2


Competitive Advantage:
a.The twenty-seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c. Machines with quality guarantee for one year, life-long maintenance.
d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
e. Professional development group continuously improves and upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers' special requirements.
