HDPE LDPE Film Printing Machine

China HDPE LDPE Film Printing Machine  supplier

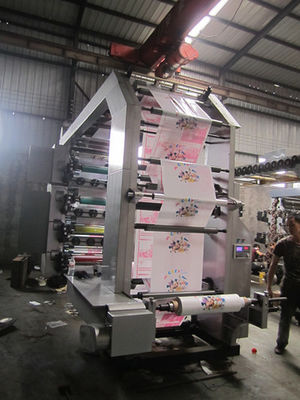

Large Image :  HDPE LDPE Film Printing Machine

Product Details:

Place of Origin: Zhejiang,China
Brand Name: SANBI
Certification: CE,ISO9001:2000,SGS
Model Number: HYT8600-81800

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD12,000- USD150,000
Packaging Details: standard seaworthy packing
Delivery Time: 30-60 days
Payment Terms: TT OR L/C
Supply Ability: 15 Sets/month
Detailed Product Description





HYT8600-81800 8 colors high speed flexographic printing machine for plastic film



Quick Detail:


- Hydraulic lift control printing roller
- Metal Anilox roller 8PCS
- Automatic tension controller for unwinder and rewinder
- Automatic EPC device (Edge position controller)
- High speed 60-80m/min



Description:



1. Take it easy, accurate color, long life
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special diagonal-tooth gear, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7. Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8. With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Prrint produce are clear and good arrangement quality
10. Bearing: NSK, Japan brand, Germany ASNU aluminum alloy roll



Applications:


This machine is suitable for printing such packing materials as HDPE, LDPE polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.




Specifications:



Printing width

600mm

800mm

1000mm

1200mm

1400mm

1600mm

1800mm

0mm

Printing color

PC:8+0;7+1’6+2;5+3;4+4

Printing length

7.5 ″-40 ″

Printing plate lifting system

Pneumatic / Hydraulic press control

Mechanical speed

80 m/min

Printing speed

60 m/min

Anilox cylinder

Metal: 10DK-120DK(Germany)

Register precision

Longitude ±0.25mm  Transverse ±0.25mm

Rewinder/Unwinder DIA

ø 800mm

Master motor

5.5KW

5.5KW

7.5KW

7.5KW

11KW

11KW

15 KW

15 KW

Unwinder motor

1.1 KW

1.5 KW

2.2 KW

3.0 KW

Rewinder motor

1.1 KW

1.5 KW

2.2 KW

3.0 KW

Electrical header

20KW

22 KW

24 KW

26 KW

28 KW

30 KW

32KW

34KW

Blower of header

1.5KW ×2

1.5KW ×4

1.1Kw ×4

1.1KW ×4

1.5 KW ×4

1.5KW ×4

2.2KW ×4

2.2KW ×4

Blower of nature wind

0.75 KW

0.75KW

1.1 KW

1.1KW

1.1 KW

1.5KW

1.5KW

1.5KW

Inking motor

750W

750W

750W

750W

750W

750W

750W

750W

Master frequency converter

Panasonic / Toshiba  transducer Japan

Bearing

Japan (NSK)

Unilateral bearing

ASUN (Germany)

Weight

5500Kg

5750Kg

6000Kg

6250 Kg

6500Kg

6750Kg

7000Kg

7300 Kg

Master power

34KW

37 KW

42KW

45KW

52KW

55KW

64KW

68KW


Dimension
( L ×W×H)

4.8m
×
1.85m
×
3.2m

4.8m
×
2.05m
×
3.2m

4.8m
×
2.25m
×
3.2m

4.8m
×
2.45m
×
3.2m

4.8m
×
2.65m
×
3.3m

4.8m
×
2.85m
×
3.3m

4.8m
×
3.05m
×
3.3m

4.8m
×
3.25m
×
3.3m



Competitive Advantage:


a. The twenty seven years experence to manufacture this machine

b. 30 years professional engineers service in many countries,

c. Machines with quality guarantee for one year, life-long maintenance.

d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

e. Professional development group continuously improves and upgrades new products and new technologies .

f. Undertake various non-standard machinery, solve the customers' special requirements.
